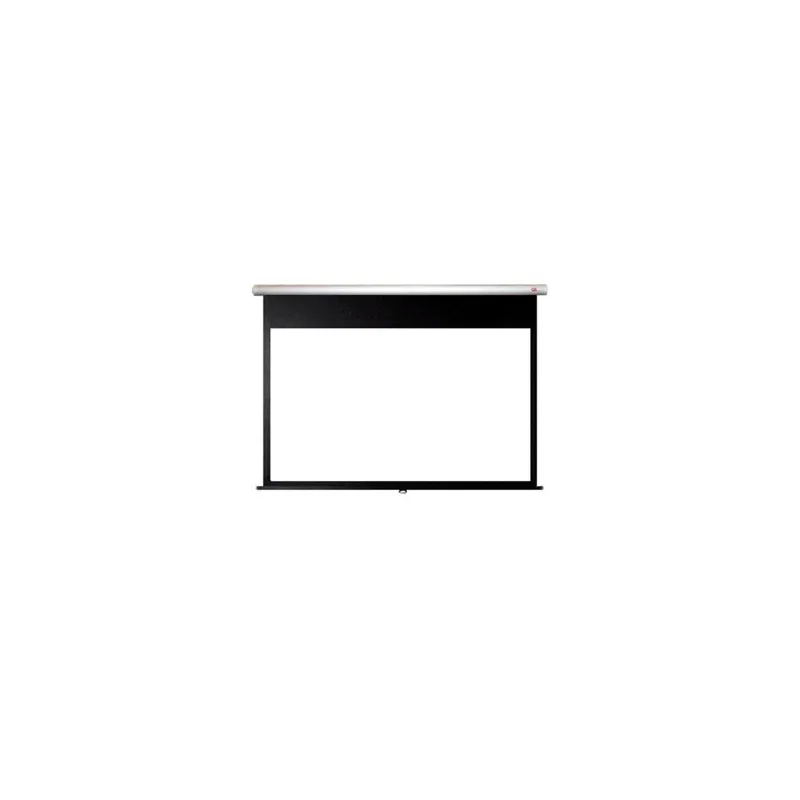

E1-H / E1-L (Electric Type)
Related information
INSTRUCTION MANUAL
INSTALLATION MANUAL
E1-H For drawings
E1-080H-064 / E1-080H-110 / E1-090H-051
E1-090H-097 / E1-100H-039 / E1-100H-085
E1-110H-027 / E1-110H-073 / E1-120H-014
E1-120H-060

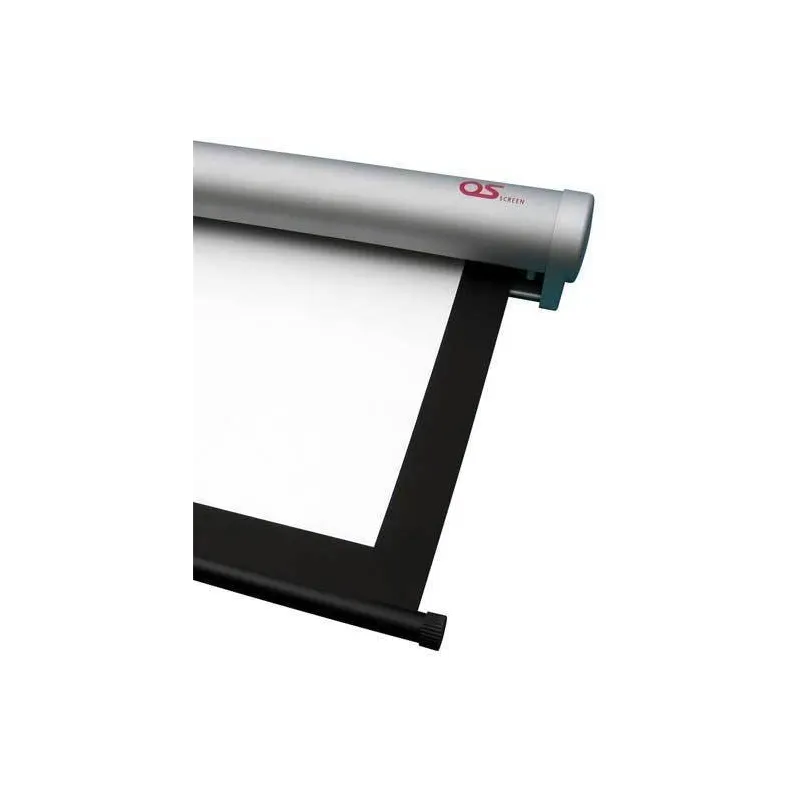

- A simple, modern looking aluminium case which goes well with all interior designs.
- Tension-adjustment technology to always maintain the screen surface in its best state and newly designed under-bar available in attractive designs and colours.
- Newly designed Separation Case and Sliding-bracket dramatically reduce the difficulties of installation work.
- Easily operated by using the infra-red wireless remote control with the electric socket and light-receptor. The IR receiver can be placed anywhere within 300mm of control socket.
- Low voltage contact type switch control is also available.
- By using the optional item extension poles (for P-series), the screen can be anchored to the walls or ceilings even without nails or screws, enabling the installation of rolled-up type screens in rented apartments.
E1-H Series HDTV Format (16:9 / 1.78:1 Aspect Ratio)
| Model | Image Size W×H(mm) | Screen Width A(mm) | Case Width B(mm) | Case Hight C(mm) |
|---|---|---|---|---|
| E1-080H-064 | 1771×996 | 2050 | 110 | 125 |
| E1-090H-051 | 1992×1121 | 2270 | 110 | 125 |
| E1-100H-039 | 2214×1245 | 2490 | 110 | 125 |
| E1-110H-027 | 2435×1370 | 2710 | 110 | 125 |
| E1-120H-014 | 2657×1494 | 2935 | 110 | 125 |
| Model | Upper Black Border U(mm) | Screen Hight T(mm) | Mounting Distance G(mm) | Screen Weight (kg) |
| E1-080H-064 | 640 | 1815 | 1350 or above | 9.4 |
| E1-090H-051 | 510 | 1815 | 1350 or above | 10.3 |
| E1-100H-039 | 390 | 1815 | 1800 or above | 11.2 |
| E1-110H-027 | 270 | 1815 | 1800 or above | 12.1 |
| E1-120H-014 | 140 | 1815 | 2250 or above | 13.0 |
| Model | White Mat (WG103) | Pure Mat (WF202) | Sound Mat (WS102) | |
| E1-080H-064 | - | ○ | ○ | - |
| E1-090H-051 | - | ○ | ○ | - |
| E1-100H-039 | - | ○ | ○ | - |
| E1-110H-027 | - | ○ | ○ | - |
| E1-120H-014 | - | ○ | ○ | - |
| Model | Ultra Beads Premium White (BU201) | Ultra Beads Premium Gray (BU202) | ||
| E1-080H-064 | - | - | - | - |
| E1-090H-051 | - | - | - | - |
| E1-100H-039 | - | - | - | - |
| E1-110H-027 | - | - | - | - |
| E1-120H-014 | - | - | - | - |
