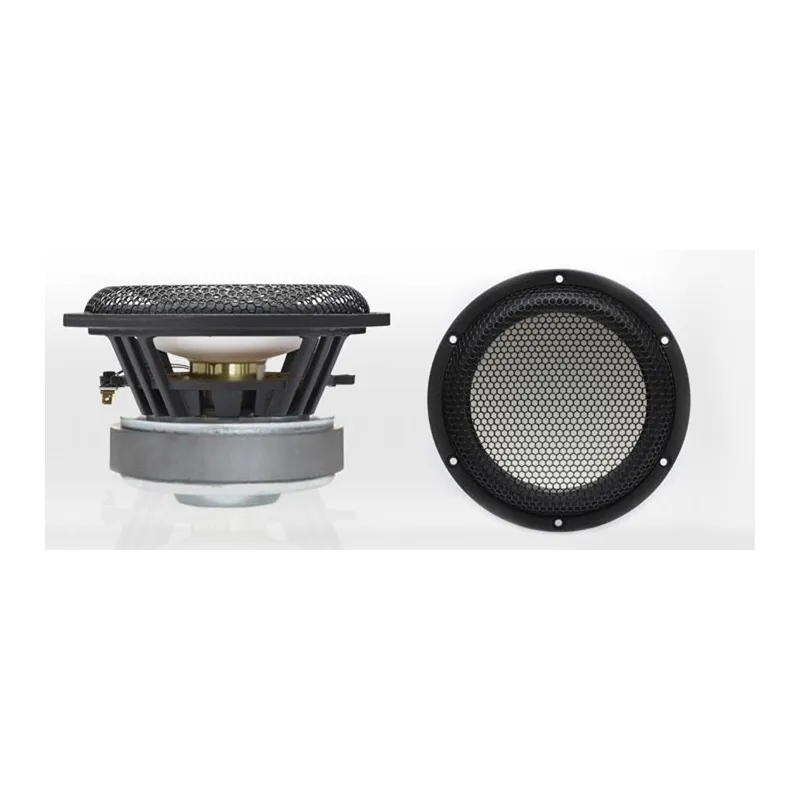

Accuton C158-6-851
Accuton C158-6-851

ACCUTON C158-6-851

6.25’ mid-bass loudspeaker for bookshelf monitors or thin floors

Voice coil: 38 mm titanium with 120 mm motor for high performance in small spaces

SPL capabilities: High

€460.00

Have you seen it cheaper? Contact us >

Order to factory (60 days)

  Can we help you? Contact to our Expert Now
bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

Contact us without any obligation.

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




Accuton C158-6-851. Bass-Midrange.

Highlights:

  • 6.25 inch bass-midrange for small bookshelf monitors or slim floorstanders
  • 38mm titanium voice coil former and 120mm motor for high performance in small enclosures
  • long excursion design for high SPL capabilities

Vented Box design parameters:

  • Vb: 10L, Port diameter: 40mm, Length: 145mm, Fres: 46Hz, F-3dB: 47Hz, Q: 0.58 (typical)
  • Vb: 15L, Port diameter: 40mm, Length: 100mm, Fres: 43Hz, F-3dB: 41Hz, Q: 0.50 (extended bass)
  • Vb: 6.5L, Port diameter: 40mm, Length: 220mm, Fres: 48Hz, F-3dB: 54Hz, Q: 0.61 (0.7dB Ripple @ 100Hz)

Closed Box design parameters:

  • Vb: 2.3L, -16dB @ 40Hz, F-3dB: 98Hz, Q: 0.71 (typical)
  • Vb: 7L, -14dB @ 40Hz, F-3dB: 96Hz, Q: 0.50 (extended bass)
5036000006
