Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 10" subwoofer. Get a free knock-down subwoofer cabinet for a limited time with the purchase of a Morel Titanium Ultimate 10" subwoofer.
Highlights:
Copper-sleeved pole piece and titanium former reduce speed-depleting inductance
8 ohm impedance for a high damping factor and more amplifier control
5.1" Hexatech voice coil for 600 watts RMS power handling
Accucenter self-centering, one-piece paper cone assembly
Product details:

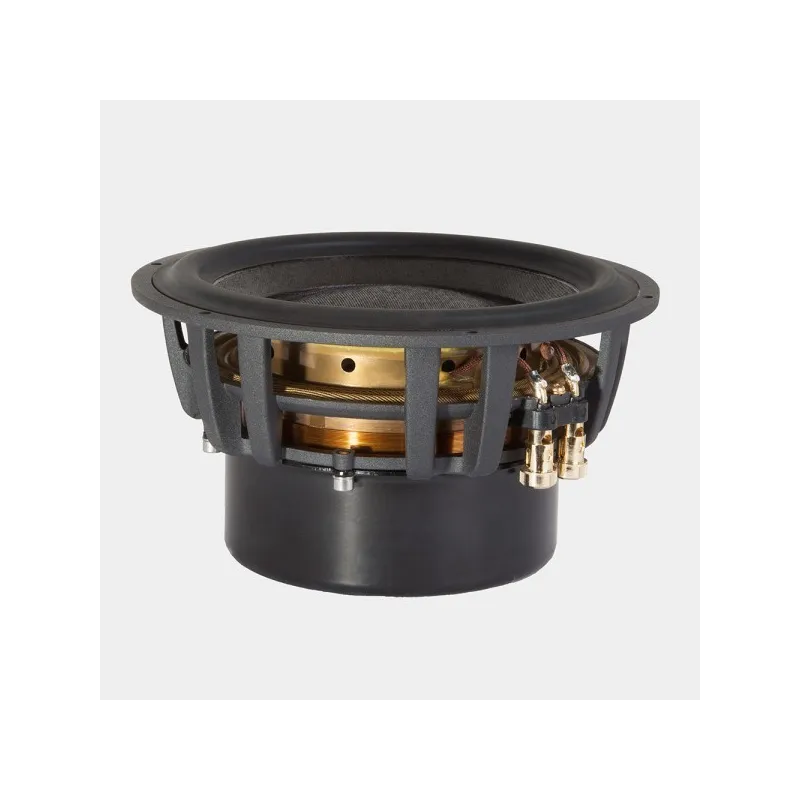

Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm
To create their Titanium Ultimate high fidelity 10" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.
Speed-robbing energy storage is reduced to an insanely low 0.52 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.
For a limited time, a 1.25 cubic foot knock-down subwoofer cabinet is included for free. This cabinet creates a critically damped system when used with the Morel Titanium Ultimate 10" subwoofer and 1 lb. of Acousta-Stuf, for a Qtc of 0.61 and an f6 of 38 Hz, for refined sub-bass playback that excels with classical, jazz, and high-fidelity recordings.
Product Specifications
- Nominal Diameter 10"
- Power Handling (RMS)600 Watts
- Power Handling (max)3,000 Watts
- Impedance 8 ohms
- Frequency Response24 to 2,000 Hz
- Sensitivity 86 dB 2.83V/1m
- Voice Coil Diameter 5.1"
Thiele-Small Parameters
- Resonant Frequency (Fs)24 Hz
- DC Resistance (Re)6.3 ohms
- Voice Coil Inductance (Le)0.52 mH
- Mechanical Q (Qms)4.95
- Electromagnetic Q (Qes)0.40
- Total Q (Qts)0.37
- Compliance Equivalent Volume (Vas)3.74 ft.³
- BL Product (BL)15.86 Tm
- Diaphragm Mass Inc. Airload (Mms)106g
- Maximum Linear Excursion (Xmax)10.5 mm
- Surface Area of Cone (Sd)346 cm²
Materials of Construction
- Cone MaterialPaper
- Surround MaterialRubber
- Voice Coil Wire MaterialAluminum
- Voice Coil FormerTitanium
- Basket / Frame MaterialCast Aluminum
- Magnet MaterialFerrite
Mounting Information
- Overall Outside Diameter 10.35"
- Baffle Cutout Diameter 9.49"
- Depth 5.85"
- Mounting Holes 6
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
- Sealed Volume 1.04 ft.³
- Sealed F351 Hz
- Vented Volume 2.38 ft.³
- Vented F329 Hz
Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm
- Brand Morel
- Model TiCW 1058Ft
- Part Number297-109
- Unit of Measure EA
- Weight 16.9500 lbs-7.5Kg
