Accuton BD25-6-258. (Contact us to know the price)
1’ tweeter with ultra hard diamond dome
Design: 58 mm body, easy mounting with patented clamping technique
Motor: Suspended, FEA-optimised, ventilated titanium voice coil, double neodymium magnet
Recommended application: Above 2000 Hz
Ultra-low distortion and excellent heat transfer
Sensitivity: 91 dB
Resistance (DC): 5.22 Ohm
Resonant frequency (Fs): 850 Hz
Mechanical quality (Qms): 3.54
Electrical quality (Qes): 0.96
Effective diaphragm area (Sd): 5.94 cm² (5.94 cm²)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?
Accuton BD25-6-258. Tweeter. (Contact us to know the price)

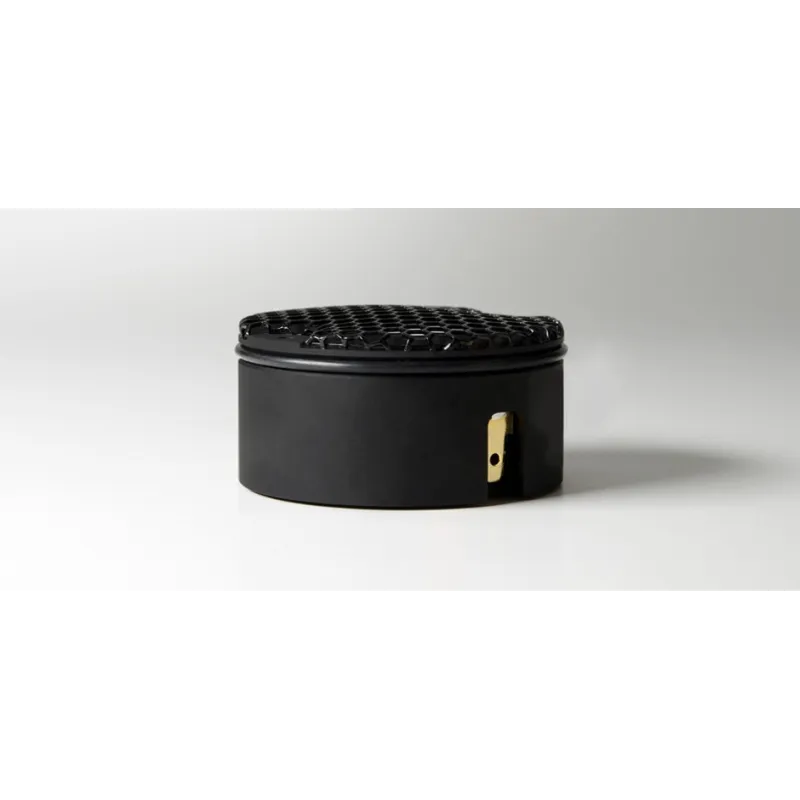

The BD25-6-258 is a 1 inch tweeter with ultra hard diamond dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.
We recommend our BD25-6-258 in an application above 2000 Hz.
Characteristics:
| Material | Diamond | |
| Type | Tweeter | |
| Total Diametre | 57.6 mm | |
| Recorte | 58 mm | |
| Altura | 29 mm |
Specifications:
