ACCUTON BD51-6-585 (Contact us to know the price)

Name: ACCUTON BD51-6-585 (Contact us to know the price)
Brand: Accuton
SKU: 5036000022
Availability: OutOfStock

ACCUTON BD51-6-585 (Contact us to know the price).

2’ tweeter with ultra-hard diamond dome

Design: 86 mm body, easy mounting by means of patented technique

Motor: Suspended, FEA-optimised, ventilated titanium voice coil, double neodymium magnets

Distortion: Ultra-low distortion, excellent heat transfer

Recommended application: Above 800 Hz

Sensitivity: 93 dB

Resistance (DC): 5.5 Ohm

Resonant frequency (Fs): 522 Hz

Mechanical quality (Qms): 4.71

Electrical quality (Qes): 1.66

Total quality (Qts): 1.23

Effective membrane area (Sd): 23.8 cm².

Moving mass (Mms): 1.5 g

€0.00

Have you seen it cheaper? Contact us >

Out of stock

Can we help you? Contact us

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

For personalized advice, contact us with no obligation

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

ACCUTON BD51-6-585 (Contact us to know the price).

The BD51-6-585 is a 2 inch tweeter with ultra hard diamond dome in a 86 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.

We recommend our BD51-6-585 in an application above 800 Hz.

Characteristics:

Material		Diamond
Type		Tweeter

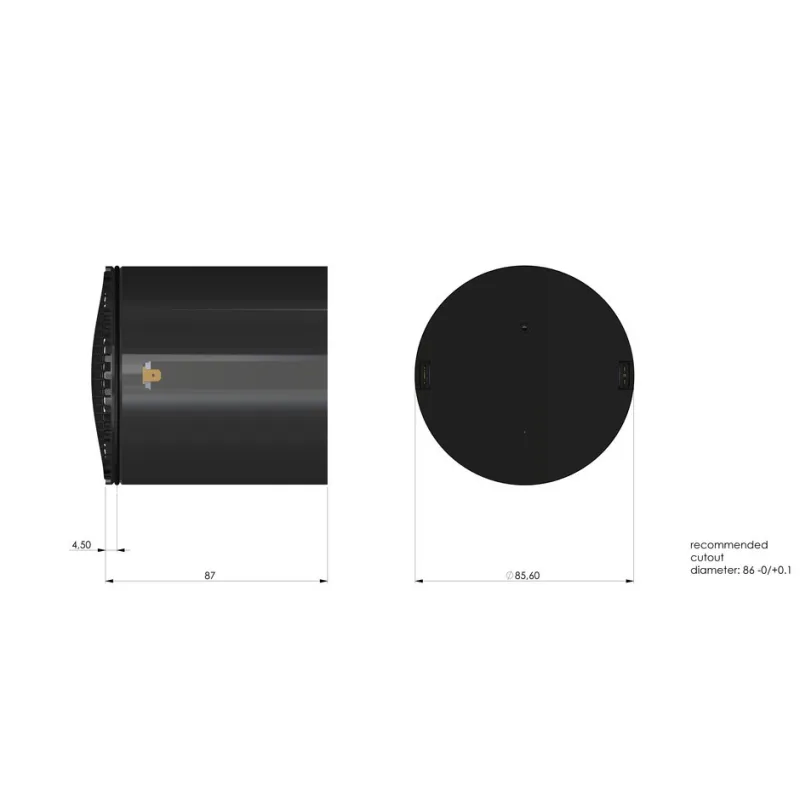

Total Diametre		85.6 mm
Recorte		86 mm
Altura		87 mm

Specifications:

Sensitivity lp 92 dB
Resistance (DC) re 5.36ohm
Frequency of resonance fs 832 hz
Vas equivalent volume - LTR
Mechanical quality qs 5.05
Electrical quality qes 0.96
General quality quarts 0.81
Effective membrane area sd 8.55 cm²
Moving mass mms 0.45g
Cone suspension resistance cms 0.145 mm / N
Mechanical resistance rms 0.97 kg * s

Reference 5036000022
