Cayin IHA-8: Advanced Power and Superior Listening Experience
The Cayin IHA-8, an advanced model of the renowned IHA-6, is a stationary Class A amplifier. Equipped with four JFET channels and dual gain adjustment (high and low), this device takes the listening experience to a new level.
Versatile Connectivity and Audio Modes
It offers multiple headphone output options including XLR-4, 4.4mm and 6.35mm. Plus, it features the innovative Hyper Ultimate mode for richer, more dynamic sound reproduction.
Compact and Powerful
Despite its compact size, the IHA-8 incorporates the best internal components to ensure superior sound quality and a noticeable improvement in the performance of your favourite headphones.
Pure Class A Amplification
Utilises a pure Class A amplifier circuit with four channels, reducing noise and distortion while increasing current and driveability for exceptional listening.
Hyper Mode Innovation
Hyper Mode maximises the performance of the amplifier circuit, adjusting current and voltage in Class A status to improve power output and gain, resulting in clearer sound and a well-defined soundstage.
Full Connectivity
The IHA-8 provides three output options for the most popular headphones on the market, adapting to any listening need. In addition, it allows for balanced and single-ended connections with XLR and RCA inputs.
Precise Volume Control
The volume control system includes a custom ALPS step potentiometer and JRC MUSES7320V electronic volume chips, allowing fine and precise adjustments in the analogue domain.

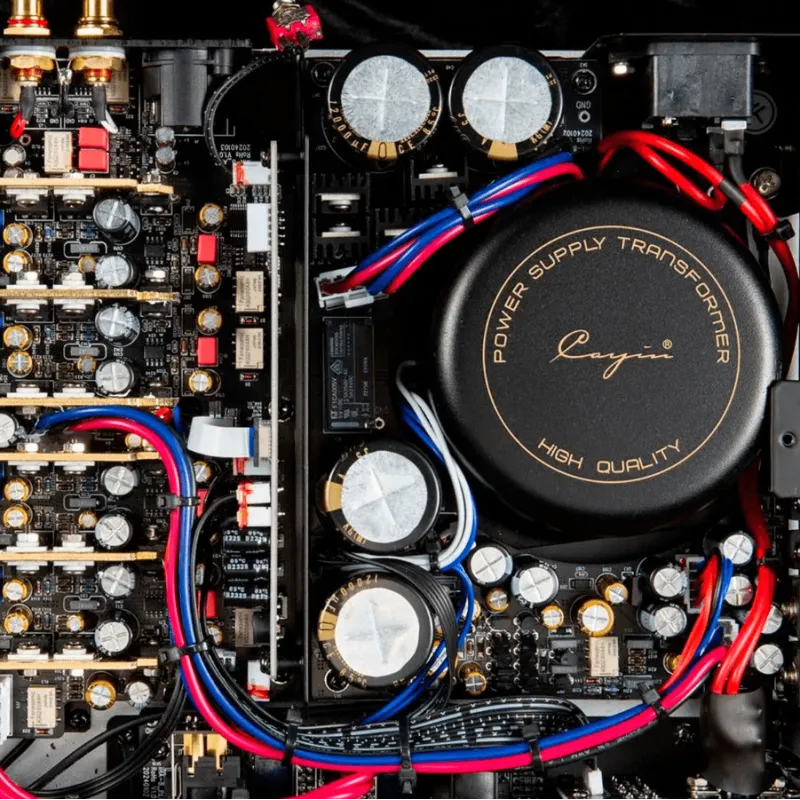

Robust Power Supply
The design includes a discrete high-current, high-dynamic voltage stabiliser circuit, ensuring a stable and efficient power supply for the amplifier and its circuitry.
Comprehensive Protection
A built-in protection system ensures the safety of the amplifier and headphones through various measures such as DC detection, delay squelch and overcurrent protection.
Exquisite and Functional Design
The IHA-8 is not only functional, but also aesthetically appealing with a compact design that integrates seamlessly with other audio devices, delivering optimal and durable performance.
Technical specifications:
Circuit Design: 4-ch Discrete MOSFET Pure Class A
Hyper Mode
Line Level Input
Pre-Amp Input
Headphone outputs: Single-ended 6.35mm, 4-pin XLR, 4.4mm

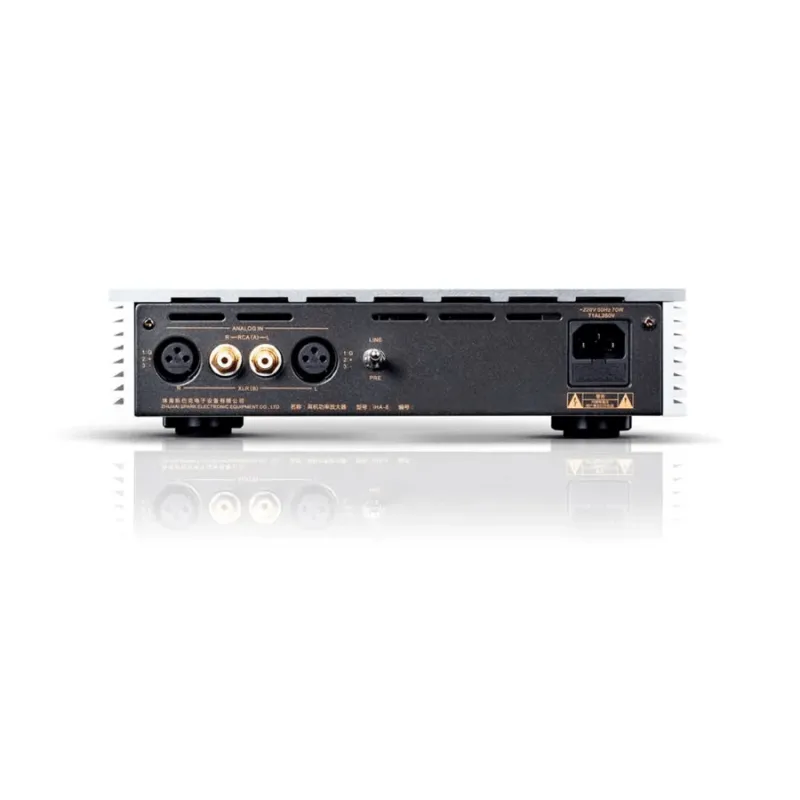

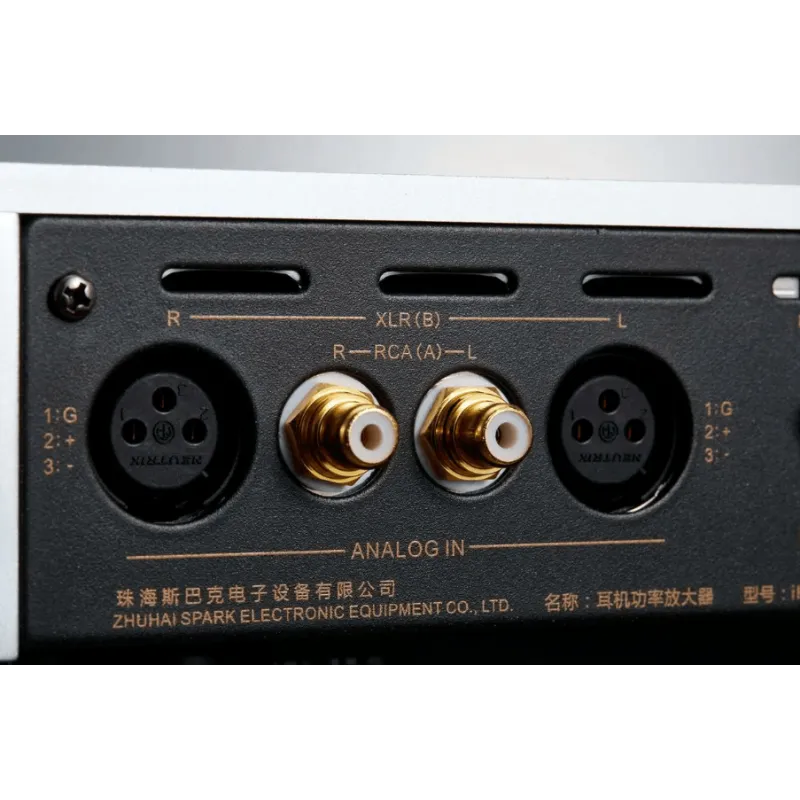

Analogue inputs: Balanced XLR x 2, RCA x 2
Weight: 5kg
Power supply: 75W toroidal transformer
Power management: 50,000uF Nichicon capacitors
Gain control: low gain/high gain +12dB
Dimensions: 270 x 215 x 70 mm
Specifications headphone output (balanced)
STD mode power:
16 Ohms - 7000mW
32 Ohms - 5400mW
64 Ohms - 3600mW
128 Ohms - 2100mW
300 Ohms - 100mW
Hyper mode power:
16 Ohms - 9500mW
32 Ohms - 7700mW
64 Ohms - 5000mW
128 Ohms - 3000mW
300 Ohms - 1400mW
Frequency response: 10Hz-80kHz +0.5dB
THD+N:
STD: 0.0018% (High gain, 1kHz, 530mW, A-weighted)
Hyper: 0.0020% (High gain, 1kHz, 750mW, A-weighted)
SNR:
STD: 127dB (Low Gain, 32 Ohms, A-weighted)
Hyper: 130dB (Low gain, 32 Ohms, A-weighted)
Dynamic Range:
STD: 128dB (Low Gain, 32 Ohms, A-weighted)
Hyper: 130dB (Low gain, 32 Ohms, A-weighted)
Channel Separation: 103dB (A-weighted, 1kHz, 32 Ohms)
Output Impedance: 0.4 Ohms
Headphone Output Specifications (Single-Ended)
STD mode power:
16 Ohms - 2600mW
32 Ohms - 1800mW
64 Ohms - 1000mW
128 Ohms - 560mW
300 Ohms - 250mW
Frequency response: 10Hz-80kHz +0.5dB
THD+N:
STD: 0.0038% (High gain, 1kHz, 175mW, A-weighted)
Hyper: 0.0040% (High gain, 1kHz, 250mW, A-weighted)
SNR:
STD: 124dB (Low Gain, 32 Ohms, A-weighted)
Hyper: 127dB (Low gain, 32 Ohms, A-weighted)
Dynamic Range:
STD: 125dB (Low Gain, 32 Ohms, A-weighted)
Hyper: 127dB (Low gain, 32 Ohms, A-weighted)
Channel Separation: 68dB (A-weighted, 1kHz, 32 Ohms)
Output Impedance: 0.2 Ohms
