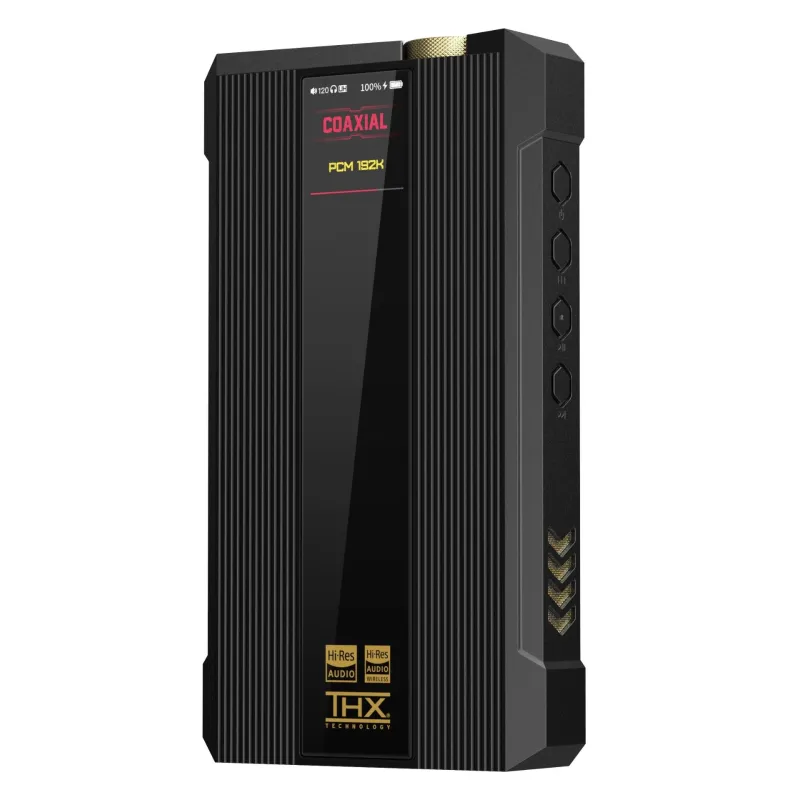

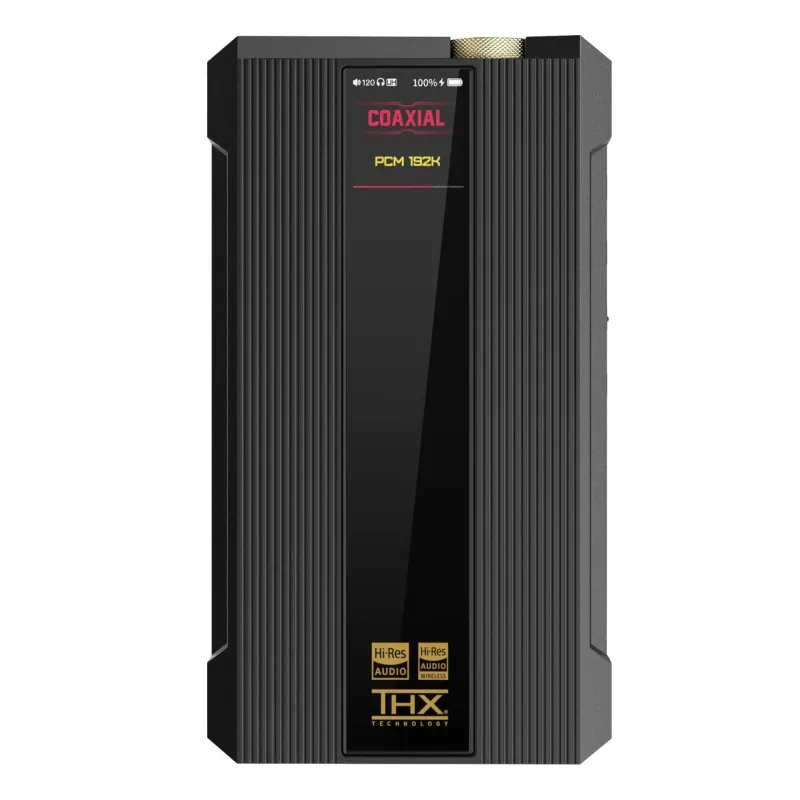

The FiiO Q7 is a portable DAC/Amplifier that combines the power and quality of desktop devices with portability. Delivering up to 3000mW of maximum output power, equipped with THX AAA 788+ amplification modules and a variety of inputs and outputs, this device is designed to satisfy the most demanding audiophiles. It is also the first of its kind to feature a color IPS display and a digital control core developed by FiiO.
Bringing Desktop Performance to a Portable Format
Inspired by the design of the M17, the Q7 integrates desktop-grade components and technology, making it a perfect hybrid of portability and performance. It sets a new standard for portable amplifiers.
3000mW of Power
Despite its compact size, the Q7 delivers:
- Desktop-grade amplification with a 4-way balanced circuit.
- Five gain levels, capable of driving everything from sensitive IEMs to demanding headphones.
- Up to 3000mW of maximum power in DC mode.
Versatile Connectivity
The Q7 features a comprehensive range of inputs and outputs for various setups:
- Inputs: USB, optical, and coaxial.
- Outputs:
- 6.35mm and 3.5mm single-ended headphone outputs.
- 4.4mm and 2.5mm balanced outputs.
- Line-out (LO) for external system integration.
Regulated Power Supply
- 5-stage audio circuit with 20 LDOs and a high-capacity supercapacitor for stable energy delivery.
- Battery Mode: 9200mAh capacity, providing up to 1500mW of power.
- Direct Current (DC) Mode: Protects the battery while delivering maximum performance.
Digital Control Core
The exclusive FiiO-developed control chip uses an ARM Cortex M4 processor to manage key functions such as:
- Clock management.
- USB and optical decoding.
- Audio performance optimization.
The design physically separates digital and analog sections onto independent boards, shielded to minimize interference and ensure pure sound.
Modern and Functional Design
The Q7 features a bold mechanical design with customizable RGB lighting, giving it a futuristic and high-tech look. It also includes a 1.3-inch color display for intuitive control of settings and device status.

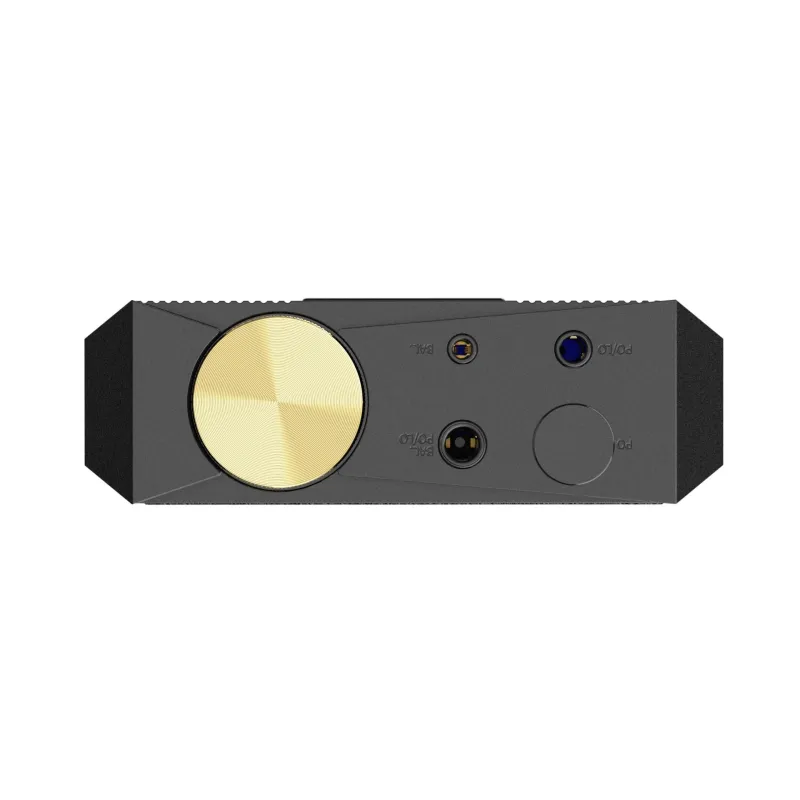

Multi-Function Volume Knob
The Q7’s volume knob allows for:
- Precise volume adjustments.
- Input selection.
- Menu navigation.
Even when the screen is off, the volume can be adjusted quickly and accurately.
Control with FiiO Control App
The FiiO Control app provides full access to Q7 settings, including:
- Bluetooth codec selection.
- RGB lighting customization.
- Sound channel balance.
- Other parameter adjustments.
Included Accessories
The Q7 comes with a comprehensive range of accessories to enhance functionality:

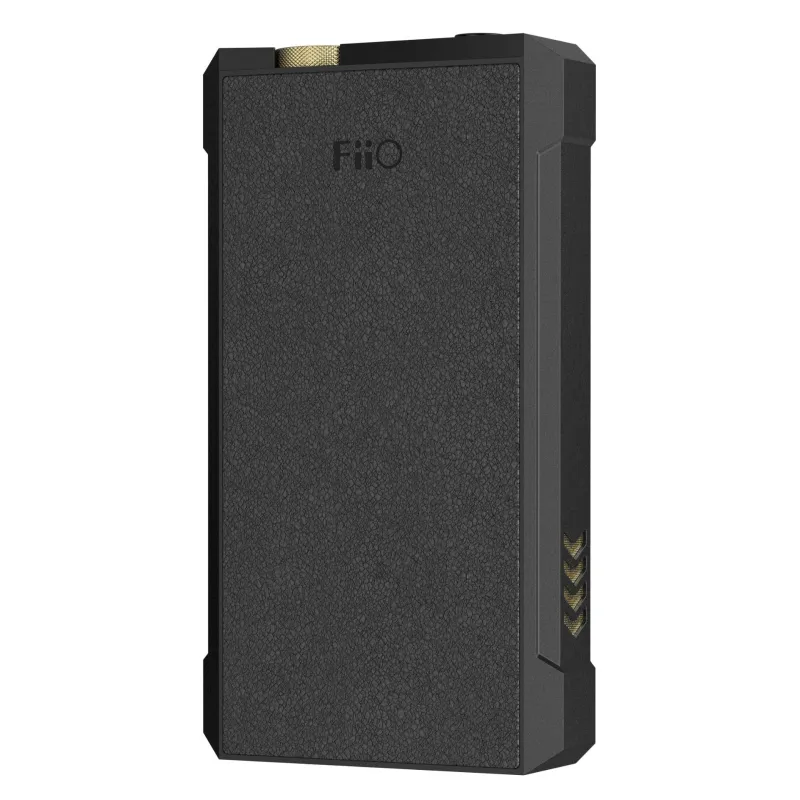

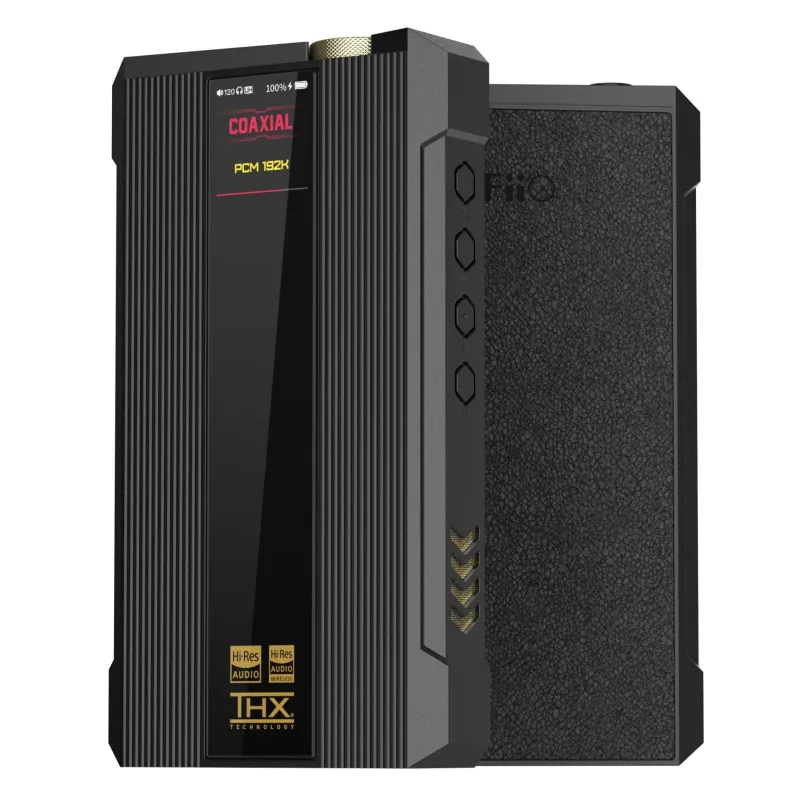

- Faux leather case.
- Cooling stand.
- USB power cable.
- Power adapter.
- AC power cable.
- USB adapter.
- Two Type-C to Type-C cables.
- Lightning to Type-C cable.
- Quick start guide.
- Warranty card.
The FiiO Q7 is the ideal solution for those seeking desktop-level power, versatility, and quality in a portable format. It’s a device designed to redefine the limits of portable audio amplification.
Name/Model: Q7
Hardware Solution: DAC: ES9038Pro, USB: XMOS XU316, AMP: THX AAA 788+ x2, BT: QCC5124
Color: Black
Weight: ≈620g
Dimensions: ≈158.4x88.5x28.3mm
MQA: 8x decoding
Gain Levels: Ultra High (DC mode), Super High, High, Medium, Low
Display: 1.3-inch full-color TFT (240x240)
Channel Balance: ≤0.2dB
Bluetooth
Bluetooth Codecs (5.0): AAC, SBC, aptX, aptX LL, aptX Adaptive, aptX HD, LDAC
Codec Indicator:
- Blue: SBC
- Cyan: AAC
- Purple: aptX/aptX LL
- Yellow: aptX HD
- White: LDAC
- Green: aptX Adaptive
Audio Specifications
Maximum Sample Rate:
- USB DAC: 768kHz/32bit, DSD512 (native)
- Coaxial: 192kHz/24bit, DSD64 (DoP)
Recommended Headphone Impedance:
- PO: 16~150Ω
- BAL: 16~300Ω

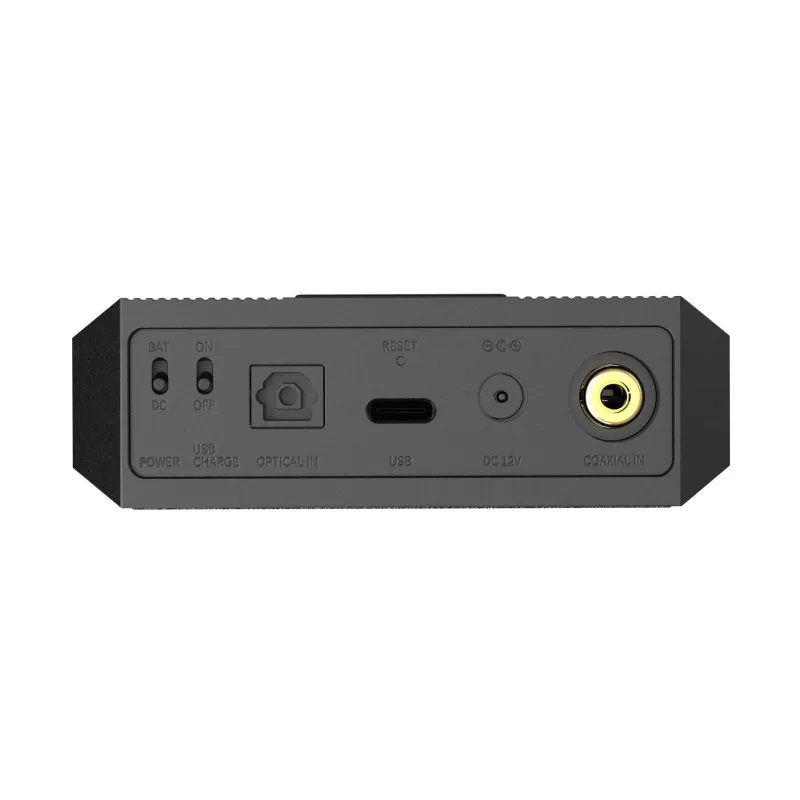

Inputs/Outputs
Inputs:
- USB
- Optical
- Coaxial
Outputs:
- Single-ended: 3.5mm, 6.35mm
- Balanced: 2.5mm, 4.4mm
- Line-out: 3.5mm (shared with PO), 4.4mm (shared with BAL PO)
- Coaxial: RCA
Power Supply:
- DC power: Φ6.2mm DC port
- Battery: 9200mAh capacity
Firmware Updates
- Bluetooth firmware can be updated via OTA.
- XMOS/system firmware can be updated via USB.
The FiiO Q7 sets a new standard for portable DAC/Amps, delivering unparalleled power, versatility, and sound quality for audiophiles on the move.
