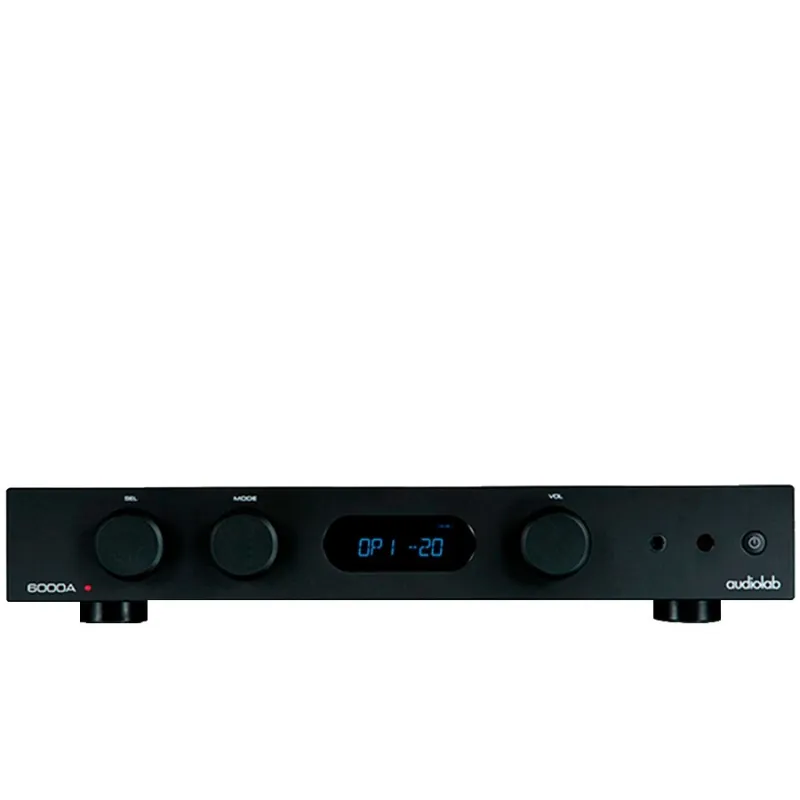

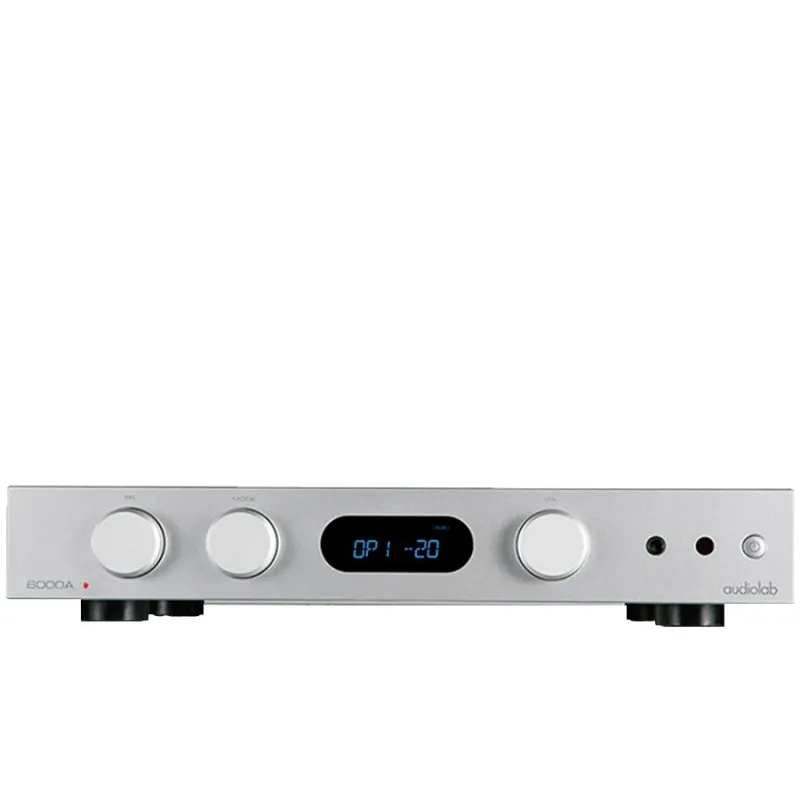

AUDIOLAB 6000A. Amplifier with digital and analog sources

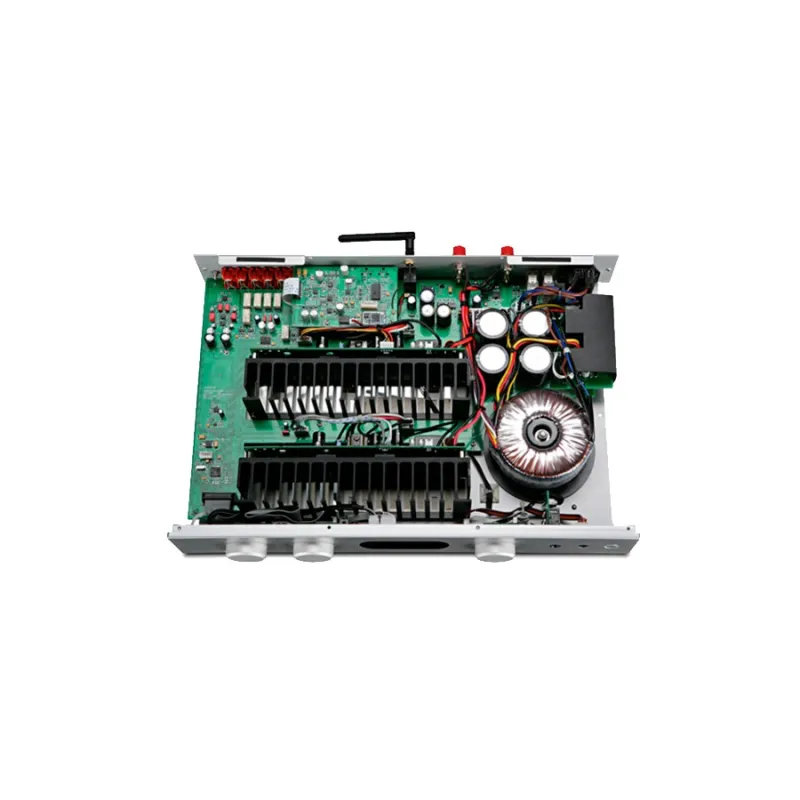

The perfect embodiment of what a contemporary integrated amplifier should be, the Audiolab 6000A exhibits exceptional versatility for a product of its price, covering compatibility with a wide spectrum of analog and digital sources, wireless connectivity for portable devices, a phono stage for play vinyl records, a refined DAC section, and even dedicated headphone amplification. All this without neglecting an amplification section for loudspeakers endowed with the transparency and punch that have given Audiolab so much prestige. It is the engineering of the 6000A that truly makes the difference as a result of the extreme care put into the design and execution of both the analog and digital sections. Thus, the DAC functionality is based on one of ESS Technology's sophisticated ES9018 Sabre32 Reference D / A conversion “chips” equipped with the exclusive 32-bit HyperStream architecture and the American firm's Time Domain Jitter Eliminator scheme to minimize noise. background and maximize dynamic range. Even more careful is the analog circuitry, configured in Class AB with Complementary Feedback (CFB) topology to guarantee superior linearity and excellent thermal stability. A generous power supply ensures firm control of the associated speakers while maintaining excellent dynamic range. Identical care is found in the preamplification section, designed to preserve the integrity of the musical signal and executed with high precision components, taking special care with their physical arrangement to avoid potential interference. The result is the quintessential English sound that Audiolab represents, updated to take full advantage of next-generation digital sources.
Technical characteristics
Stereophonic integrated amplifier of exceptional quality / price ratio.
High precision preamp section.
Executed with audiophile grade components.
Very high precision volume control.
200 VA toroidal power transformer.
Power section with a total reserve capacity of 60,000 uF.
High current delivery capacity.
DAC section based on a D / A conversion “chip” with 32-bit technology.
DAC section with 3 user selectable digital filters.
Coaxial (2) and optical (2) digital inputs.
Phono section compatible with Moving Magnet capsules.
Front function display with OLED screen.
2x50 continuous watts output power in Class AB into 8 ohms.
20-30,000 Hz frequency response, +/- 0.1 dB.
Signal / noise ratio of 112 dB in Line, 76 dB in Phono (MM) and 112 in digital.
Sensitivity / Impedance of Line inputs: 720 mV / 10 kohms.
Sensitivity / Impedance of the Phono input: 3.1 mV / 47 kohms.
Dimensions: 445x80x330 mm (W x H x D).
Weight: 7'8 kg.
