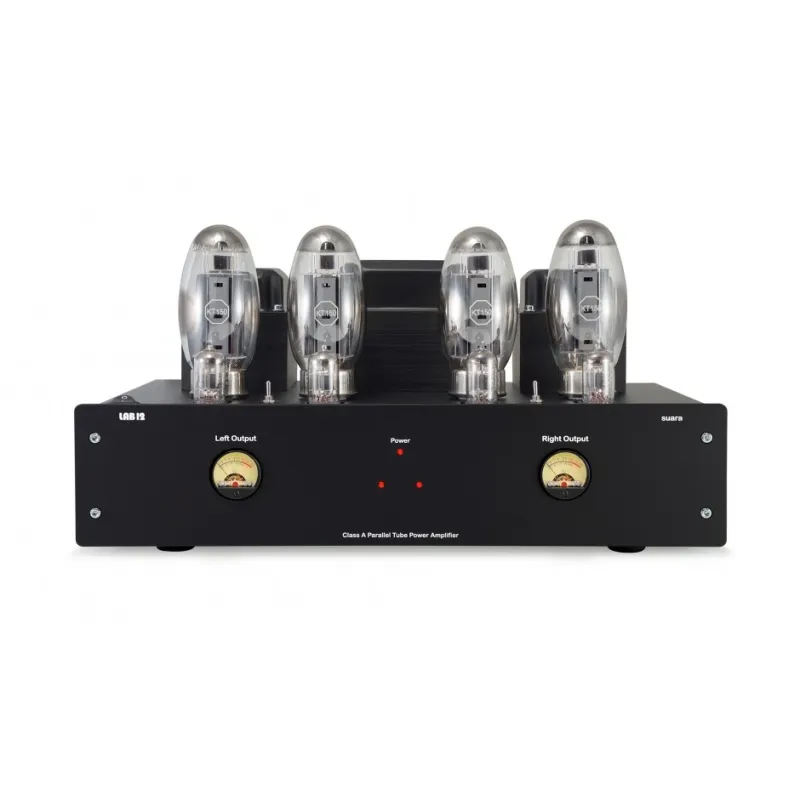

LAB 12 Suara MKII: Class A Power Amplifier, 50 W Per Channel
The LAB 12 Suara MKII epitomizes the purity and musicality of single-ended Class A power amplifiers. With parallel valve design and 50 W per channel output, Suara delivers the warmth and natural sound associated with tube amplification, combined with exceptional dynamic control and precision. Designed to satisfy the most discerning audiophiles, Suara handles any loudspeaker with authority, providing a clear, authentic listening experience.
Carefully fine-tuned through rigorous component selection, extensive sound testing, and real-world listening sessions, the Suara offers flexibility with a mode selector switch for Triode or Ultra Linear operation, catering to individual listening preferences.
This amplifier wraps listeners in a warm, intimate, and relaxed audio experience, making it ideal for extended listening sessions without fatigue.
Elegant and Functional Design.
The Suara is available in two finishes: Matte Black and Frozen Silver, with anodized, sandblasted aluminum accents. Its sophisticated design perfectly complements its high-performance capabilities.
Key Features
- Valve compatibility: Designed for 6550, KT88, and KT150 (factory-equipped with KT150).
- Power valves: Four matched KT150 tubes.

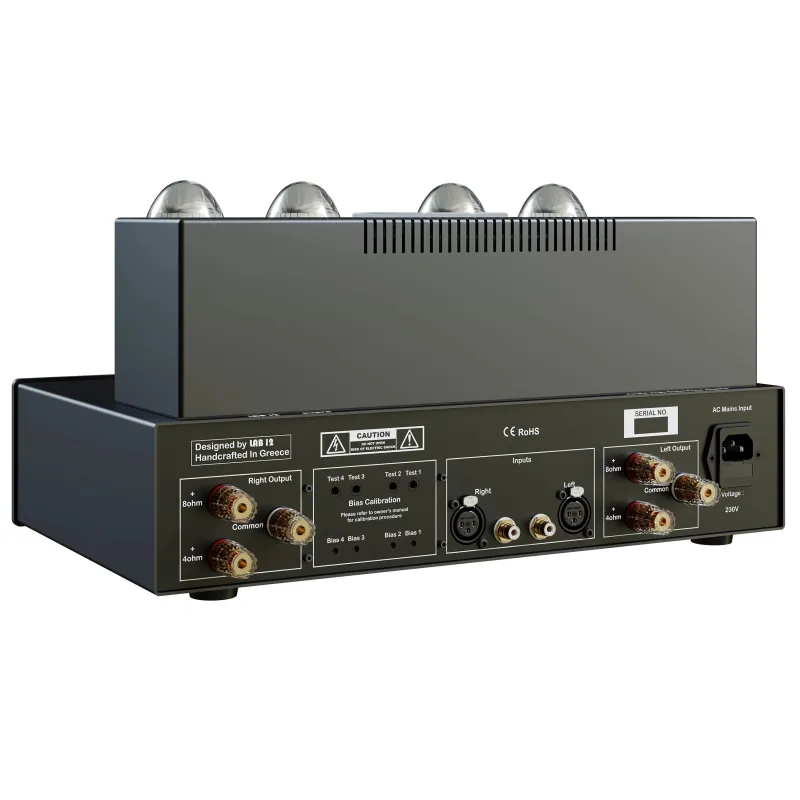

- Manual bias adjustment: Accessible from the rear of the unit for easy calibration.
- Mode selector: Switch between Triode and Ultra Linear for varied sonic characteristics.
- Handmade audiophile-grade transformers: Ensures precise and clean power delivery.
- No global feedback: Maintains audio purity and natural sound.
- High-quality audio components: Selected for every stage of the circuit.
- Exclusive technologies: Implements SRSG® and Fine Symmetry® for enhanced performance.
- Retro Nissei VU meters: Adds functional and aesthetic appeal.
- 5mm anodized aluminum front panel: Provides durability and a premium finish.
- 5-year warranty: Peace of mind with long-term reliability.
Technical Specifications
- Power supply: 230 V AC, 50 Hz (optional: 115 V AC, 60 Hz).
- Power consumption: 350 VA max.
- Output power: 50 W per channel (KT150).
- Frequency response: 20 Hz - 25 kHz (-0.9 dB).
- Input impedance: 100 kΩ.
- Recommended speaker impedance: 4 - 8 Ω.
- Input sensitivity:
- Triode mode: 1.8 V.
- Ultra Linear mode: 1.5 V.
- Tube complement:
- 4 x dual triodes.
- 4 x KT150 power pentodes.
- Inputs: 1 stereo unbalanced line input (RCA and XLR).
- Available colors: Matte Black and Frozen Silver.
- Dimensions: 430 mm (W) x 190 mm (H) x 290 mm (D).
- Weight: 19.5 kg.
Why Choose Suara MKII?
The LAB 12 Suara MKII combines Class A warmth and power with a refined, flexible design. Its advanced technology and meticulous craftsmanship make it an exceptional choice for audiophiles who value sound quality, precision, and aesthetics. Whether you prefer the natural sweetness of Triode mode or the dynamic power of Ultra Linear, Suara delivers an unparalleled auditory experience.
