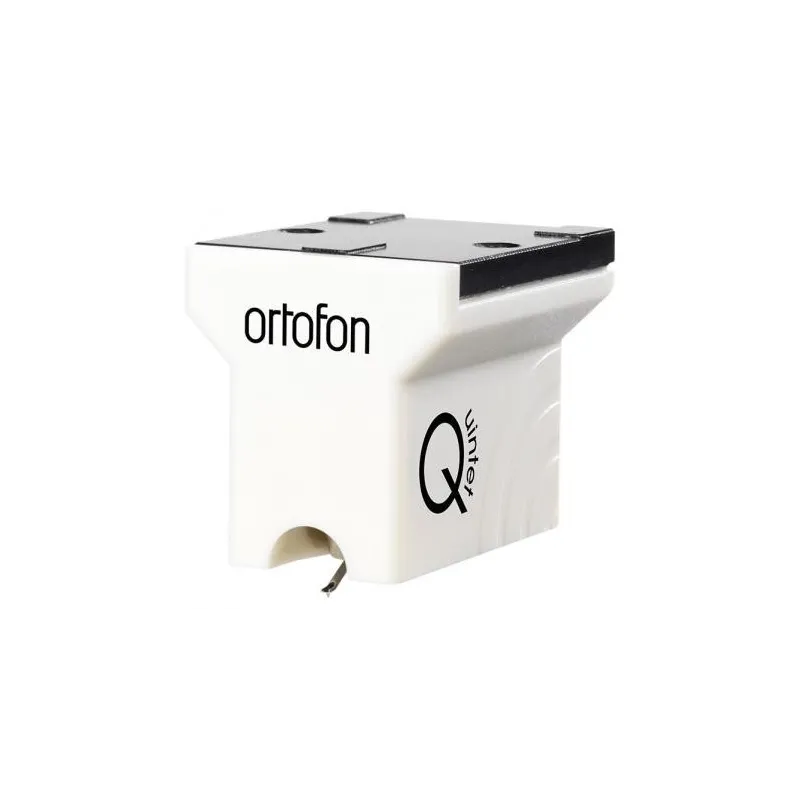

True to the Ortofon tradition when it comes to offering the best transduction systems for reading all types of vinyl records, the Mono Quintet is the company's answer to those fans looking for a high quality mobile coil capsule / Price to reproduce with maximum realism your most precious monophonic recordings. Quintet Mono monophonic design, in the characteristic body of ABS-based special thermoplastic material developed for the Quintet range, a Nude elliptical needle that is an excellent solution for the reproduction of monophonic vinyl records with microsurges. Thanks to the sophistication of its mobile system, the Quintet Mono will perfectly read even warped or damaged discs, while ensuring effective control of surface noise. The Quintet Mono uses a configuration set up by Ortofon (with high purity silver windings) to deliver the same output signal in either of its two pairs of connectors, eliminating the need to have specific components for the Reading of monophonic discs and therefore can reproduce the latter with any conventional stereo system.
Technical characteristics
- Mobile coil capsule (MC) of very high performance.
- Designed for reading monophonic vinyl records with microsurges.
- Body made of special thermoplastic material based on ABS.
- Output voltage from 0'3 mV to 1 kHz and 5 cm / s.
- Requency response of 20-25,000 Hz (cut-off points at -3 dB).
- Recommended Load Impedance: MC> 20 ohms.
- Tracking Skill: 70 um (at 315 Hz).
- Dynamic Compliance: 15 um / mN.
- Recommended Support Force: 2.3 g.
- For moderate mass reading arms.
- Weight: 9 g.
