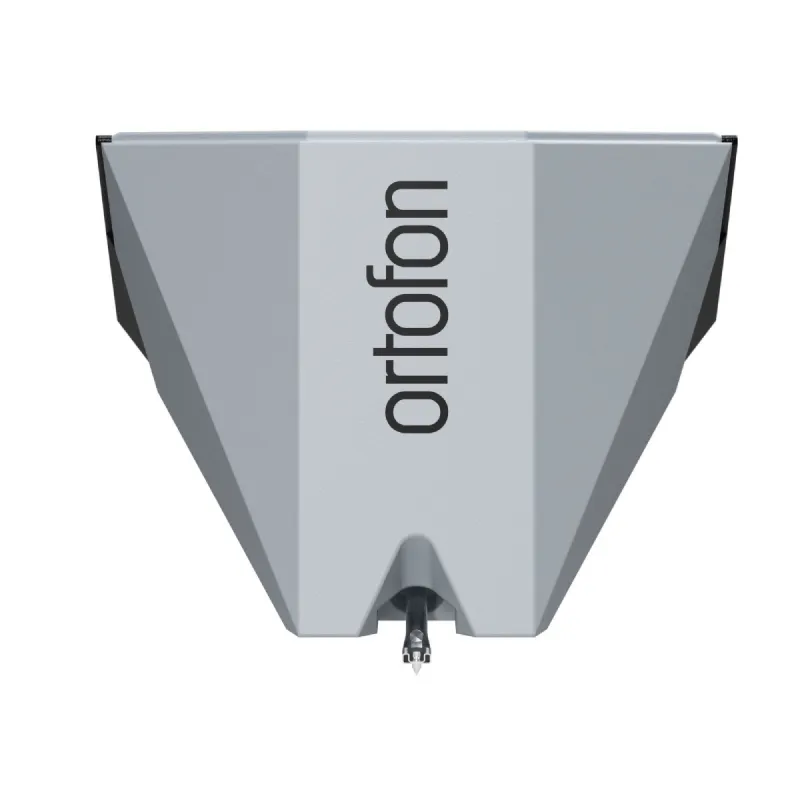

The 2M 78 cartridge is designed for optimal playback of 78 rpm shellac records, offering specific features for this type of records. Here is a detailed description:
Features:
Spherical Diamond Pencil Tip:
Perfect for playing 78 rpm shellac records, which require a larger stylus profile.
Body made of Hopelex:
Ensures high rigidity and eliminates unwanted resonances for clearer audio reproduction.
Linked Output:
Delivers the same output signal from both sets of polar pins, eliminating the need for dedicated mono equipment.
Stereo Compatibility:
Allows you to enjoy true mono playback on any stereo playback system.
Technical Specifications:
- Output Voltage (1000 Hz, 5 cm/sec):** 4 mV.
- Frequency Response:** 20-20,000 Hz (+3 / -1 dB).
- Tracking Capability (315 Hz):** 70 µm (with recommended tracking force).
- Lateral Dynamic Compliance:** 18 µm/mN.
- Pen Type: Spherical.
- Pencil Tip Radius: R 65 µm.
- Tracking Force Range: 1.6-2.0 g (16-20 mN).
- Recommended Tracking Force: 1.8 g (18 mN).
- Internal Impedance, DC Resistance: 700 ohms.
- Internal Inductance: 350 mH.
- Recommended Load Resistance: 47 kOhm.
- Recommended Load Capacitance: 150-300 pF.
- Tracking Angle: 20°.
- Cartridge Colour, Body/Optical Pen: Black/Grey.
- 2MR Cartridge Weight: 6 g.
- Verso 2M and 2M Cartridge Weight: 7.2g.
- 2M Preassembled Cartridge Weight: 16.7 g.
This 2M 78 cartridge provides a high quality, dedicated solution for those looking to enjoy the authenticity of 78 rpm record playback while maintaining the versatility to be used in a variety of stereo playback systems.
