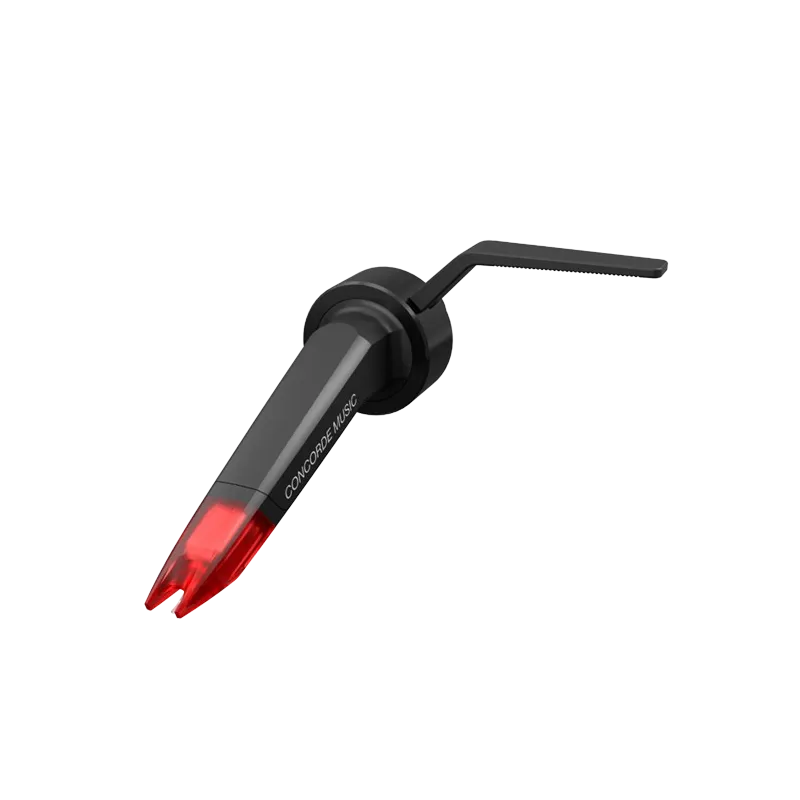

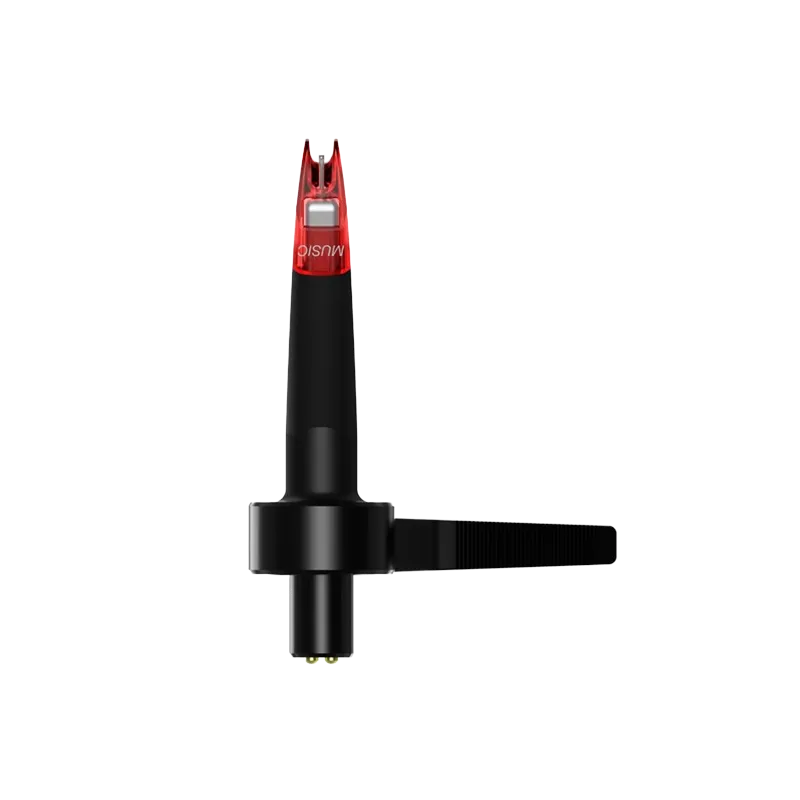

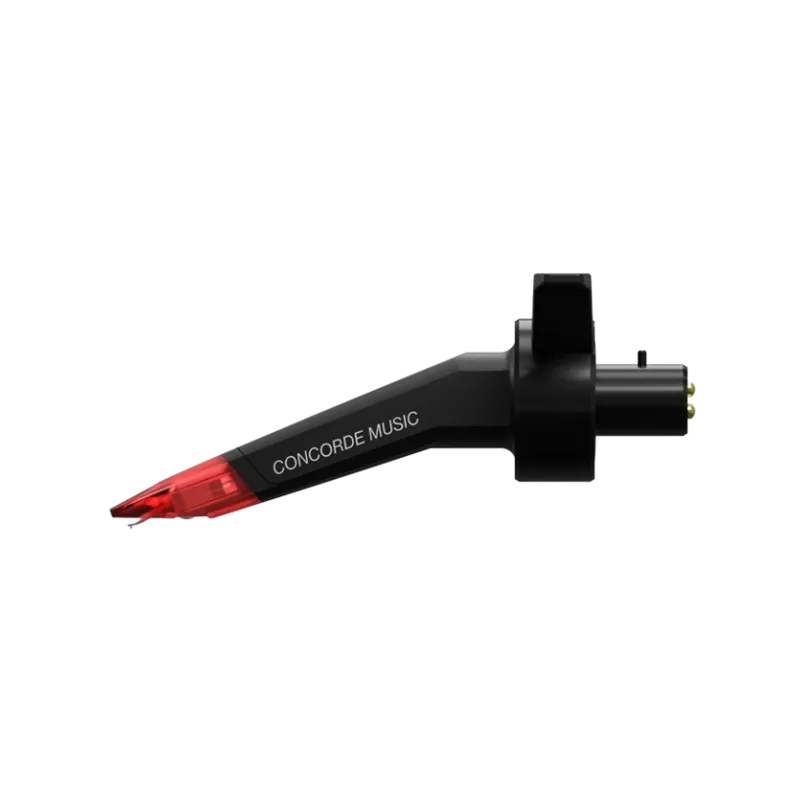

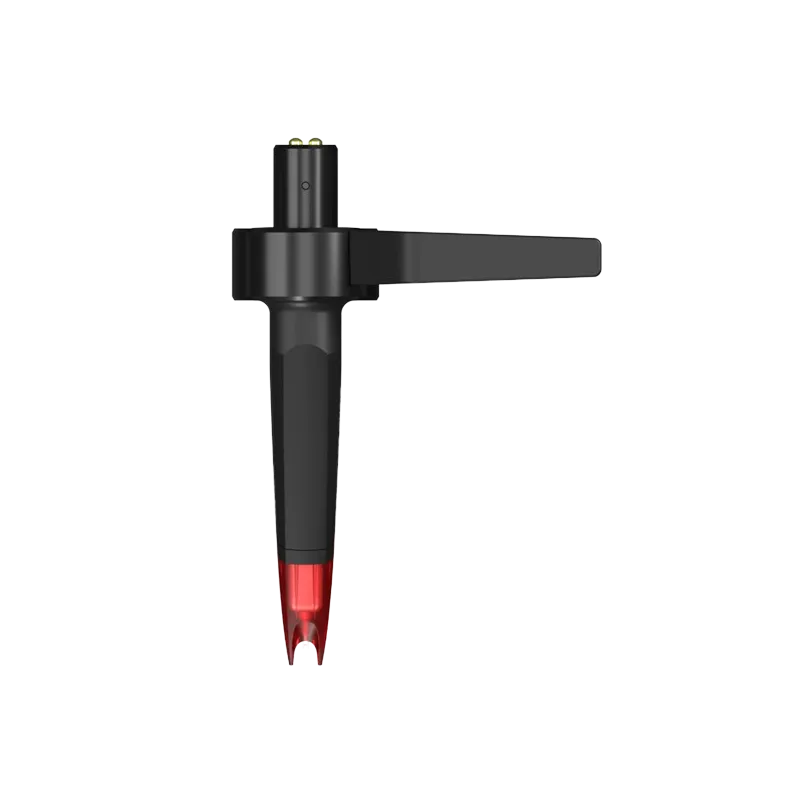

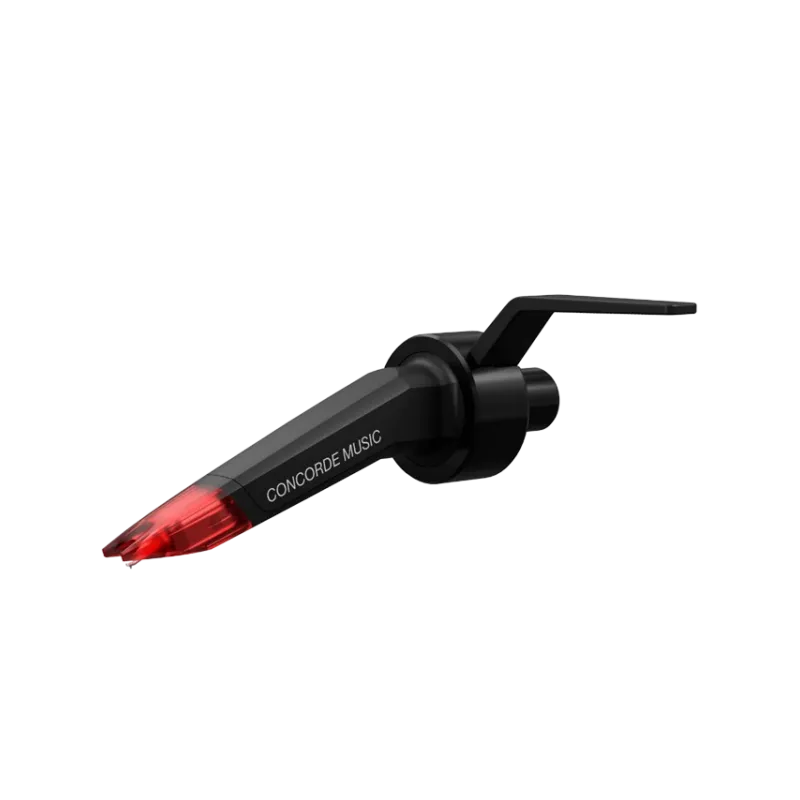

ORTOFON Concorde Music Red. MM Cartridge.
Output voltage: 6 mV*. Recommended load resistance: phono MM/ 47kOhm. Load capacitance 150-300 pF. Tracking ability: 80 µm**. Dynamic compliance, lateral: 15 µm/mN. Needle: elliptical (R 8/18 µm) Bearing force: 1.8 g. Aluminium cantilever.
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?
Ortofon Concorde Music Red: An Icon in the Audio World
The Ortofon Concorde Music Red builds on a rich legacy that began with the launch of the original Concorde. With a long history as one of the most famous cartridges in the audio world, the Concorde Music was initially developed to offer a simple cartridge mounting solution without the need for screws or cables. Its unique design won the Danish Industrial Design Award and became an icon in the audio industry.
Developed by music lovers, for music lovers, Concorde Music capsules combine premium performance with iconic design. It's not just a capsule, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Concorde Music stands as a symbol of musical design and dedication, inviting everyone to elevate their listening experience with the sonic precision characteristic of every Ortofon capsule. Tailor-made for music lovers, it offers easy installation, high quality sound and timeless design, synonymous with a commitment to musicality.
Discover the engineering mastery of Concorde Music, where the Ortofon quad coil generator system and split pole-plugs ensure exceptional balance and channel separation. With meticulous attention to detail, the internally developed capsule compounds ensure brilliant performance, delivering an authentic musical journey with realistic accuracy and dynamic sound.
Concorde Music cartridges integrate seamlessly with all turntables incorporating a bayonet cartridge holder, ensuring easy and hassle-free installation. All Concorde Music styli are compatible with all capsules in the series, allowing for simple upgrades, such as upgrading from Concorde Music Red to Black LVB 250.
With the Ortofon Concorde Music Red, every listening session becomes an extraordinary experience, taking your musical enjoyment to new levels.
Channel balance at 1 kHz: 1.5 dB.
Output voltage at 1 kHz, 5cm/sec: 6mV
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15dB
Frequency response 20 Hz - 20 kHz: +3 / -1 dB
Tracking capability at 315 Hz with recommended tracking force: 80 µm
Compliance, dynamic, lateral: 15 µm/mN
Stylus type: Elliptical diamond on aluminium cantilever
Stylus tip radius: r/R 8/18 µm
Recommended tracking force: 1.8 g
Tracking Angle: 20° Tracking Angle: 20° Tracking Angle: 20° Tracking Angle: 20
Internal impedance, DC resistance: 1.27 kΩ
Capsule colour : Black/Red
Capsule weight : 18 g
Recommended load resistance: 47 kΩ
Internal inductance: 815 mH
Recommended load capacitance: 150-300 pF
