One for all, all for one. Our all-in-one system, ready to play vinyl records.

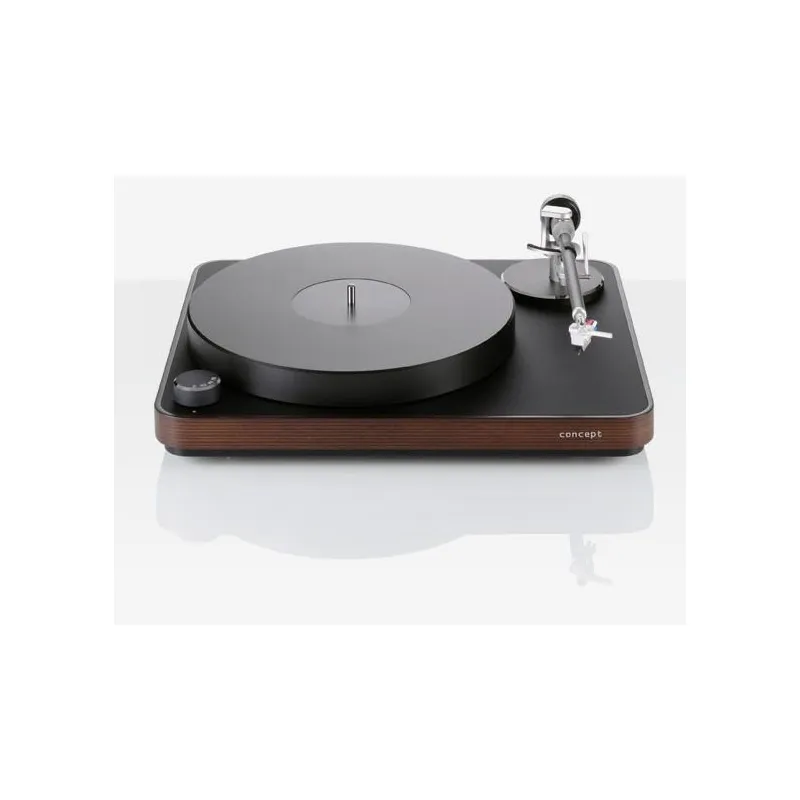

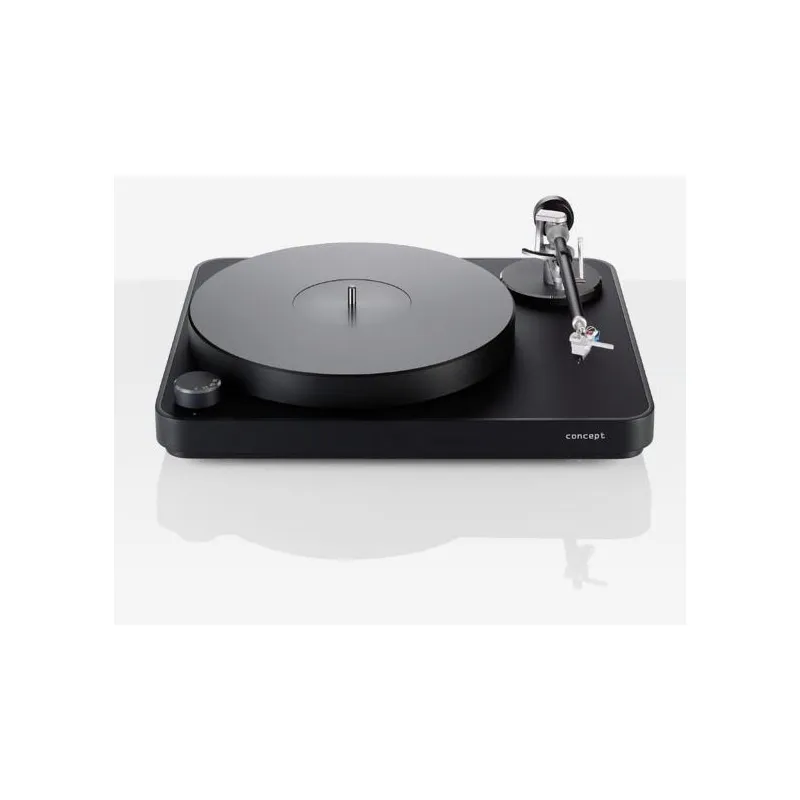

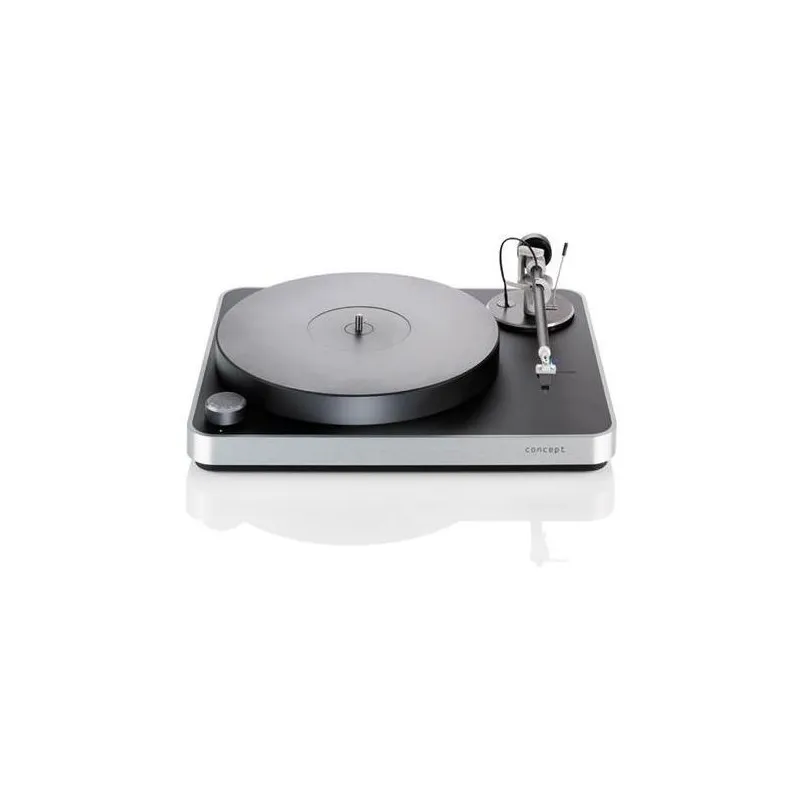

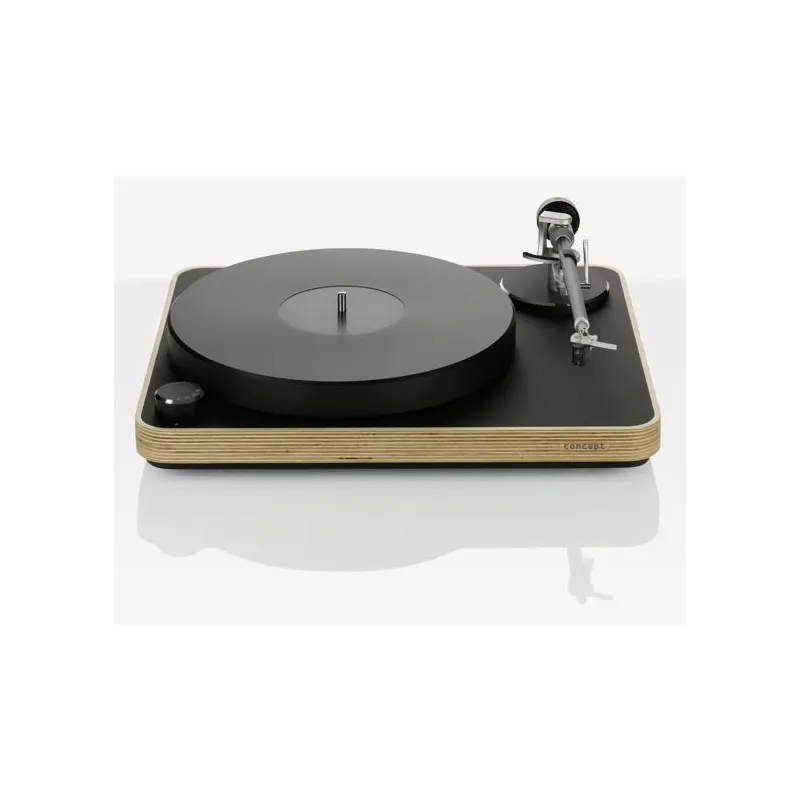

The Concept Active / Concept Active Wood turntable is available with the innovative Concept arm with frictionless magnetic bearing or our proven Satisfy Kardan aluminum gimbal mounted arm.
This complete package is completed with a high-quality moving magnet capsule or moving coil capsule.
The Concept Active is fully configured at the factory and ready to play vinyl records. Pickup tracking force and slip resistance have also been adjusted. The built-in Clearaudio phono preamp enables analog music playback with headphones and a stereo amplifier.
The excellent built-in headphone amplifier is suitable for all high-quality dynamic headphones.
One for all, all for one.
Available combinations:
Concept arm and Concept MM capsule
Concept arm and Concept MC capsule
Satisfy Kardan arm and Concept MM capsule
Satisfy Kardan arm and Concept MC capsule
Strength is in Serenity: The Best in Turntable Technology
High analog quality means perfectly combining technology, processing and design and putting it under one goal: the best possible music reproduction. At Clearaudio, development, design and production remain in the hands of a perfectly coordinated and experienced team of specialists who never lose sight of Clearaudio's goals, company philosophy and self-imposed quality standard.
From the smallest component to the total audiophile-grade work of art, everything at Clearaudio is meticulously handcrafted, with precision, and a great deal of passion. Only the mechanics manufactured with absolute precision and the well-dosed use of the density, mass and shape of the components used guarantee perfect smoothness and absence of resonance when playing vinyl records.
Among other things, specially developed high-density multilayer wood, titanium, stainless steel, aluminum and high-performance plastics are used. The focus is on two parameters: peak music playback performance and technically effective design - the aesthetic beauty of your creations alone would be too small for Clearaudio developers.
Technical specifications:
CONSTRUCTION DETAILS:
Resonance-optimized drive
High-density wooden chassis
Brushed aluminum housing
Especially satin plastic top layer
SPEED SHIFT: 33⅓ rpm, 45 rpm and 78 rpm
MOTOR:
Extremely smooth running, decoupled DC motor
Flat belt drive
Pluggable power supply designed for worldwide use for all networks and network frequencies
BEARING:
Polished and hardened steel bearing in a bronze bushing
Run on a Teflon mirror
PLATE MATERIAL: Black POM, 30mm thick
SPEED ACCURACY (MEASURED): ± 0.05%
BUILT-IN PHONO PREVIEW GAIN AT 1KHZ:
+52 dB (MM)
+72 dB (MC)
INTEGRATED PHONO PREVIEW THD:
<0.02% (MM)
<0.03% (MC)
INTEGRATED PHONO PREVIEW SIGNAL / NOISE RATIO:
-74 dB (MM)
-64 dB (MC)
RIAA ACCURACY OF THE BUILT-IN PHONO PREVIEW: ± 0.5 dB
INTEGRATED PHONO INPUT IMPEDANCE: 47 kOhm
MAXIMUM OUTPUT VOLTAGE OF THE INTEGRATED PHONO PREVIOUS: <10V
MAX CONSUMPTION:
5.5 watts
Off: 0 watts (when the main motor switch is in the "0" position)
TOTAL WEIGHT: Approximately 7.6 kg
DIMENSIONS (WIDTH X HEIGHT X DEPTH): 420mm x 350mm x 125mm (with arm)
MANUFACTURER'S WARRANTY: 2 years
