FiiO TT13 BT: FiiO's First Bluetooth Turntable
The FiiO TT13 BT marks FiiO's debut in the turntable market with integrated Bluetooth connectivity. This model combines fully analog audio architecture with a fully automatic tonearm, making vinyl playback effortless thanks to its built-in phono preamp.
High-Resolution Bluetooth
The Bluetooth version of the TT13 BT features Qualcomm technology, supporting aptX, aptX Low Latency, aptX HD, and SBC. Its optimized circuit design ensures exceptionally low noise, enabling high-quality wireless transmission for clear and faithful audio playback from your turntable.
Automatic Tonearm and Loop Playback

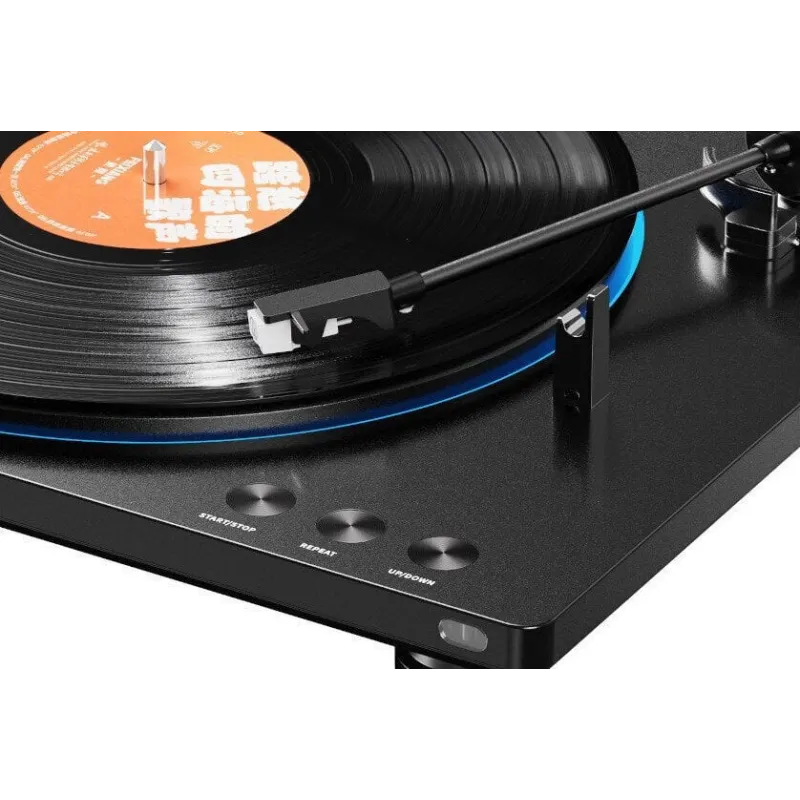

One of its standout features is the fully automatic tonearm, which operates with a single button press and can loop records without manual intervention. This makes it user-friendly and perfect for those who value convenience without compromising the vinyl experience.
Equipped with Audio-Technica AT-3600LA
The TT13 BT comes with the renowned Audio-Technica AT-3600LA cartridge, which is easy to maintain and replace. This component delivers sound quality comparable to mid- and high-range devices, ideal for discerning audiophiles.
Versatile and Compatible
- Dual-speed switch: 33 1/3 RPM and 45 RPM.
- Supports both 7-inch and 12-inch records.
- Includes a grounding cable to reduce hum and noise.
Pure Analog Sound
With fully analog audio architecture, the TT13 BT uses JRC5532 operational amplifiers in a two-stage amplification circuit. High-quality electrolytic capacitors and an independent LDO power supply minimize circuit noise, resulting in clean, authentic sound.
Built-in Phono Preamp
The carefully designed phono preamp provides a line output of up to 800mV at 1kHz/0dB, improving the signal-to-noise ratio. This eliminates the need for an external preamp, allowing for direct connection to active speakers.
Robust and Elegant Design
- Aluminum panel: Premium texture and protection against external interference.
- Solid structure: Weighing 4kg, the turntable includes feet with excellent shock absorption to reduce vibrations and improve stability.
Adjustable Lighting
The TT13 BT allows users to customize its lighting with seven different effects and adjustable brightness, creating unique ambiances. The lighting can also be turned off based on user preferences.
Dual Power Supply
It features a switching power supply compatible with voltages from 100 to 240V and supports an external 12V/1A power source, making it ideal for high-fidelity setups.
Adjustable Channel Balance
To correct potential volume imbalances between channels, it includes an external balance adjustment potentiometer, ensuring a perfectly balanced sound experience.
Complete Shielding
Leveraging FiiO's expertise in high-end audio, the analog circuit is optimized and protected against external interference, ensuring exceptional sonic performance.
Remote Control and Dust Cover

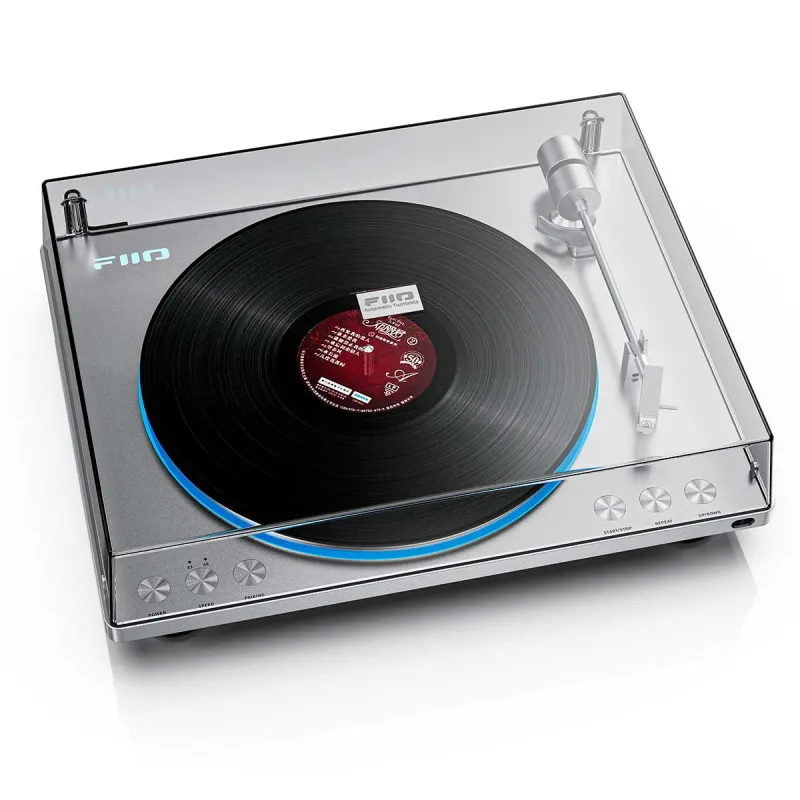

The remote control allows users to manage functions such as power, playback, lighting adjustments, and tonearm direction without moving from their seat. Additionally, a detachable dust cover is included to adapt to various usage scenarios.
Specifications
Name/Model: TT13 BT
Hardware solution: Operational amplifiers: JRC5532 x2; Bluetooth DAC: QCC3040
Weight: Approximately 3850g
Dimensions: Approximately 450 x 350 x 114 mm
Wow and Flutter: ≤0.15% WRMS (33 1/3 RPM), 3kHz
Cartridge: Audio-Technica AT-3600LA
Bluetooth Transmission (5.2): SBC/aptX/aptX LL/aptX HD
Fully Automatic Tonearm Movement: Custom mechanism
Record size: Switchable between 7-inch and 12-inch
Motor: Custom low-noise motor
Remote control: Compatible with included infrared remote
Tonearm material: Brass with sprayed surface coating
Ambient lighting: Adjustable between purple, red, orange, blue, cyan, green, white, or off
RPM: Switchable between 33 1/3 RPM and 45 RPM
Box Contents
- FiiO TT13 BT turntable
- Aluminum platter
- Platter mat
- Power cable
- RCA audio cable
- Remote control
- Quick start guide
The FiiO TT13 BT blends modern technology with the retro charm of vinyl, delivering versatility, sleek design, and unmatched sound quality.
