MUSICAL FIDELITY MX-DAC
D/A converter with USB 192/24 input and DSD 64/128 compatible.
Coaxial, optical and USB-B digital PC inputs
XLR analogue outputs
Oversampling at 24 bit / 192 kHz
USB connection specifications:
- PCM: 24 bit / 192 kHz
- DSD: DSD64 and DSD128
Other input specifications: 24 bit / 192 kHz
Offer while stocks last.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
MX-DAC with DSD: Innovation and Quality in Digital-to-Analog Conversion
After years of intensive research and development, we are proud to introduce the MX-DAC with DSD, a digital-to-analog converter that redefines quality standards in its category. Thanks to its advanced engineering, outstanding technical performance, and solid construction, the MX-DAC delivers an audiophile-grade listening experience with an unbeatable price-performance ratio.
Cutting-Edge Technical Performance
The MX-DAC has been designed to offer unprecedented performance, with technical specifications that rival those of any DAC, regardless of price. Its precision engineering ensures a completely neutral, accurate, and coloration-free digital-to-analog conversion. Some of its standout specifications include:
Ultra-low distortion: 0.00025% at 1kHz and 0.0003% at 20kHz
Extremely wide bandwidth: Flat frequency response from -3dB at 2Hz to 90kHz
Minimal noise: Signal-to-noise ratio of -116dB (A-weighted)
Exceptional precision: Linearity of +0.2dB at -116dB
Outstanding channel separation: -104dB at 1kHz, ensuring a clear and well-defined stereo image
Reduced jitter: Approximately 12pps, minimizing timing errors and improving sound clarity
Thanks to these specifications, the MX-DAC delivers near-perfect digital-to-analog conversion, providing highly accurate and detailed sound reproduction.
Extensive Compatibility and Versatile Connectivity
The MX-DAC is equipped with multiple digital inputs to accommodate various audio sources, allowing seamless connection with a wide range of devices.
Digital inputs:
Two coaxial (S/PDIF) – Supports up to 24-bit / 192kHz PCM
Two optical (TOSLINK S/PDIF) – Supports 24-bit / 192kHz PCM
One asynchronous USB Type B – Supports PCM up to 24-bit / 192kHz, as well as DSD64 and DSD128
Audio outputs:
One RCA (single-ended, 2V RMS)
One balanced XLR (4V RMS), compliant with EIA RS-297-A standard
All digital inputs—whether coaxial, optical, or USB—are processed in the DSD domain, delivering a warmer, more natural, and detailed sound that standard digital converters cannot match.
Premium Design and Build Quality
The MX-DAC not only excels in performance but also in build quality and design. Crafted from high-grade materials, its chassis and front panel are made from military-spec extruded aluminum, ensuring durability and a sleek, sophisticated appearance. Its refined aesthetics complement any high-fidelity audio system, seamlessly blending modern design with robust construction.
Key Features
State-of-the-art technical performance with ultra-flat frequency response
Supports DSD64, DSD128, and PCM up to 192kHz / 24-bit
Multiple digital inputs: coaxial, optical, and asynchronous USB
Advanced conversion: all signals are processed in the DSD domain for superior sound quality
Ultra-low distortion and minimal noise, ensuring clean and precise conversion
Exceptional channel separation, delivering a precise and immersive stereo image
Premium design with an extruded aluminum chassis for maximum durability
Technical Specifications
Signal conversion and processing:
Sample rate converter: SRC4392 with upsampling up to 192kHz
Digital-to-analog converter (DAC): PCM1795 32-bit / 192kHz Multi-bit Sigma-Delta
Audio performance:
Output voltage:
2V RMS (single-ended RCA output)
4V RMS (balanced XLR output)
Total harmonic distortion (THD):
PCM: < 0.002%
PCM (+ noise): < 0.003%
DSD: < 0.003%
DSD (+ noise): < 0.006%
Frequency response:
PCM: -3dB, 2Hz to 90kHz
DSD: -3dB, 2Hz to 40kHz
Channel separation: -110dB
Supported Audio Formats
Digital input compatibility:
Coaxial inputs (S/PDIF): Up to 24-bit / 192kHz
Optical inputs (S/PDIF): Up to 24-bit / 192kHz
USB asynchronous Type B: Supports PCM up to 24-bit / 192kHz, as well as DSD64 and DSD128 (depending on source configuration)

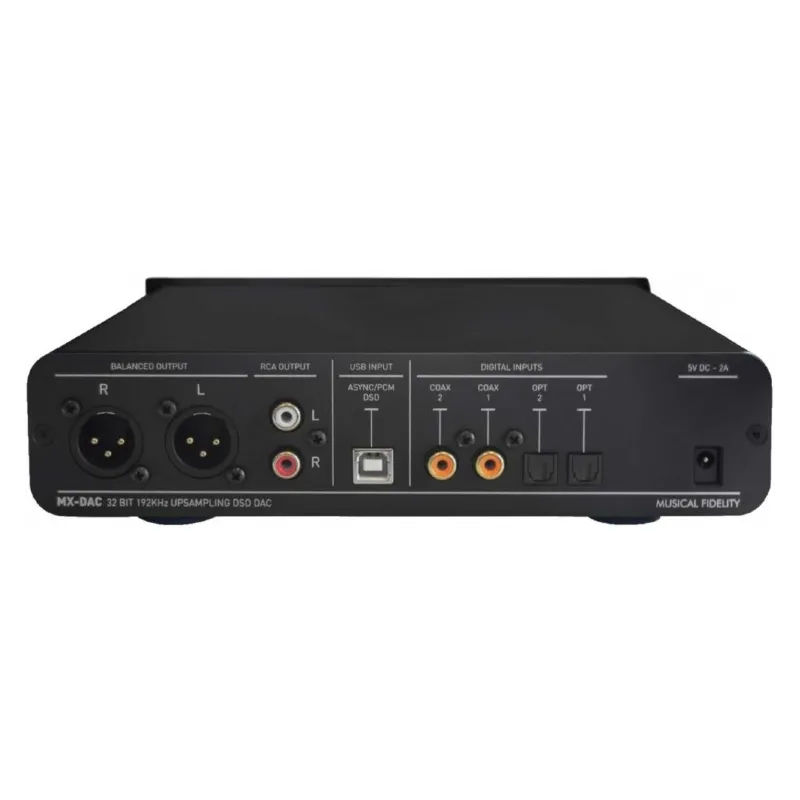

Connectivity
Digital inputs:
Coaxial (S/PDIF):
Two RCA connectors, supports PCM stereo 16-24 bit / 32-192kHz
Optical (TOSLINK S/PDIF):
Two optical connectors, supports PCM stereo 16-24 bit / 32-192kHz
USB:
One USB Type B
Asynchronous data flow, supports PCM up to 24-bit / 192kHz and DSD64 / DSD128 (depending on source settings)
Audio outputs:
Single-ended output:
One RCA (line-level, unbalanced)
Balanced output:
One XLR male, compliant with EIA RS-297-A standard
Dimensions and Power Consumption
Dimensions: 53 mm (H) x 220 mm (W) x 215 mm (D)
Weight: 1.9 kg (net) / 2.4 kg (packaged)
Power consumption:
Less than 0.25W in standby mode
Less than 1W in maximum operation
Included Accessories
5V / 2A DC power adapter (universal 90-250V)
CD with Windows drivers
User manual
The Ultimate Choice for Audiophiles
The MX-DAC with DSD is the ideal solution for high-fidelity audio enthusiasts seeking a DAC with flawless performance, versatile connectivity, and premium design. Its advanced digital conversion technology, combined with exceptional acoustic engineering, makes it an unrivaled option in its category.
