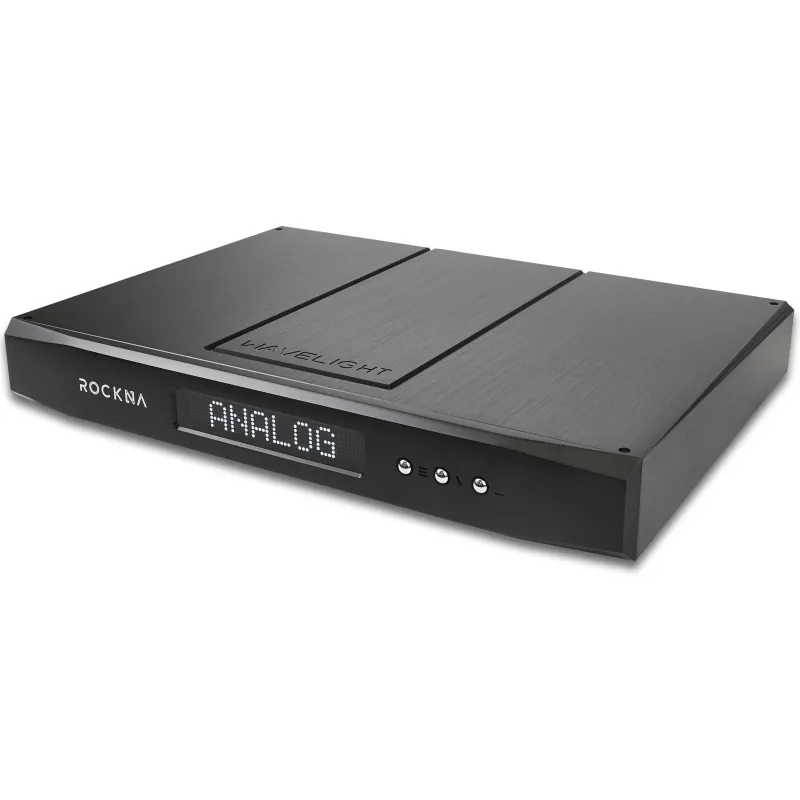

ROCKNA AUDIO Wavelight DAC
D/A converter with USB input.
It combines digital precision with an ‘analogue’ character thanks to its configurable FPGA and discrete R2R ladder. It offers customisable sampling filters, advanced reclocking and analogue volume control, as well as functioning as a preamplifier. Its solid aluminium chassis, high-capacity power supply and firmware upgradeability guarantee sound quality and long life.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Rockna Wavelight Pre / DAC. D/A converter with USB input
SILKY SMOOTH
In our quest to develop a package for the audiophile looking for more than just high quality audio reproduction, we realised several things. Firstly, we needed digital precision but with "analogue" charm, free of any "digital glare" but with great detail. Secondly, this package must provide exceptional value, future-proofing, new features and an impressive, timeless design. This is how the "Wavelight DAC" was created, more than just a little brother to the successful "Wavedream".
SOFTWARE-DEFINED ARCHITECTURE AND FPGA TECHNOLOGY
Wavelight DAC employs the latest Xilinx 7-series FPGA that allows us to assemble the functions of a high-performance custom R2R processor. Wavelight's digital processing capabilities are built with complex VHDL coding and state-of-the-art FPGA hardware. The architecture is in fact described by a piece of software.
By upgrading Wavelight with new firmware, you actually change its hardware. This system allows great flexibility, protection against obsolescence and allows us to improve the sound of your dac by changing its internal architecture, adding cool new features or improving existing ones. Each digital block is custom built to Rockna Audio's high performance standard.
SAMPLING FILTERS
For Wavelight we really did our calculations and extended the testing methodology. Careful optimisations allowed us to achieve subtle nuances in listening sessions to cater to any listener.
Powerful custom DSP units perform high precision calculations in real time for superior studio quality sampling. The user can choose from 4 filter modes: linear, minimum phase, hybrid mode and NOS.
RECLOCKING AND D/A CONVERSION
A combination of memory buffers, digital phase locking loop (DPLL) and a custom input clock decoupling scheme provides effective jitter clean-up prior to the actual conversion. Using the advanced Femtovox2 technique, the end result will lead to an uncompromising "analogue" sound.
A high-precision R2R discrete ladder is performing the conversion from digital to analogue domain, driven by FPGA algorithms. Wavelight dac is capable of operating in pure R2R mode or in hybrid ladder mode*. Future firmware will allow switching at the touch of a button.
*currently under development
ANALOGUE SECTION AND POWER SUPPLY
With 5 digital inputs and one analogue input, the unit can also function as a preamplifier. To avoid data truncation, the volume control within Wavelight is fully analogue, even if controlled digitally.

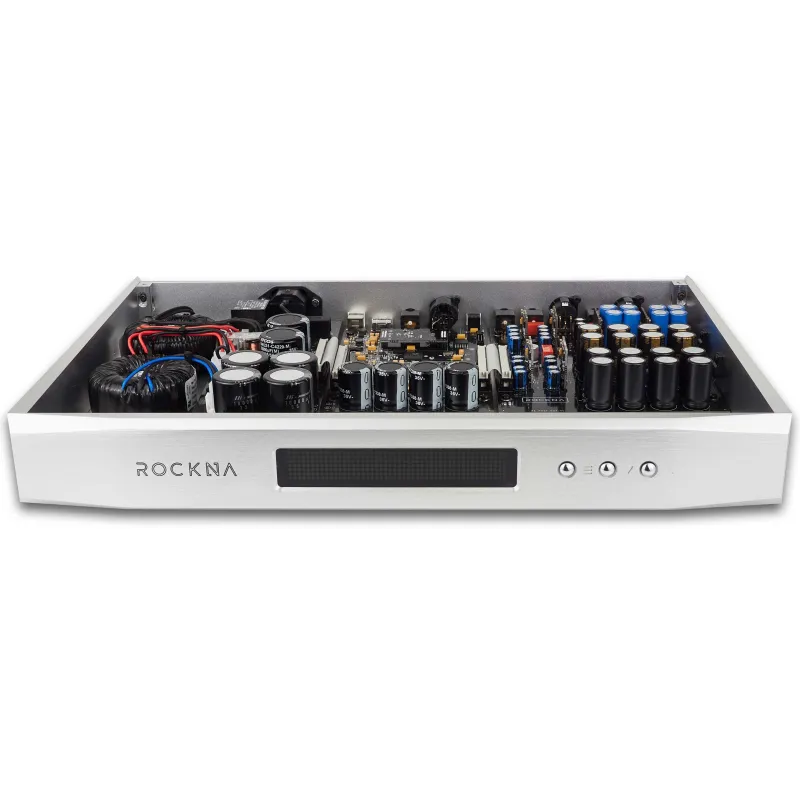

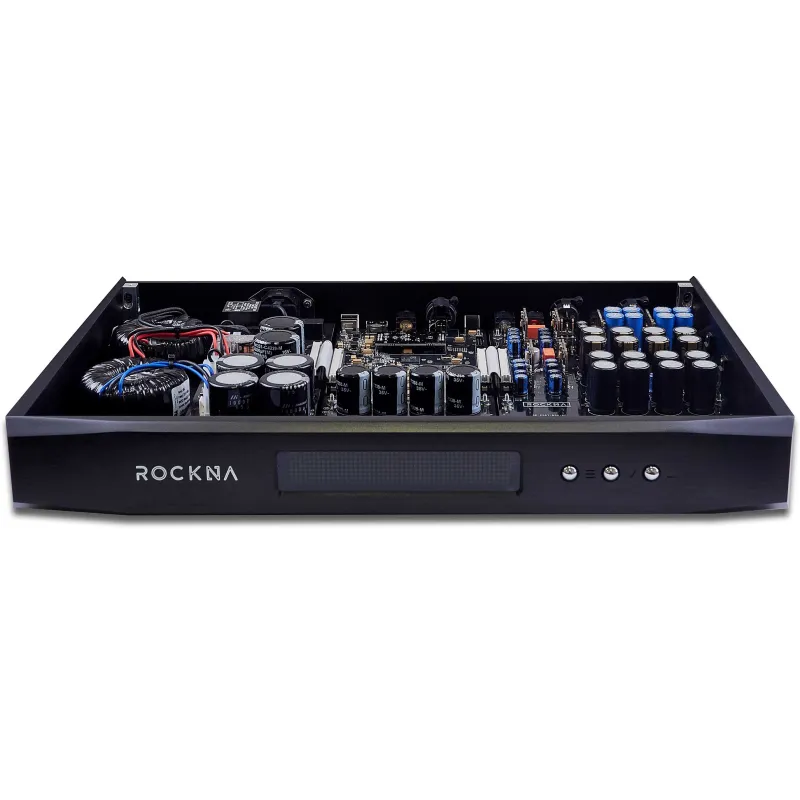

The analogue path is completely discrete. Two toroidal power transformers allow the separation between analogue and digital circuits. A high-capacity filter bank (more than 100,000 uF) is conditioning the power supplies.
QUALITY
Each Wavelight is hand-assembled in Rockna's factory, individually tested and subjected to our strict quality control process. We believe that sound should be complemented by details in fit and finish, robust construction, meticulous circuit design and reliability.
That's why we are using selected components, such as high-precision resistors or audiophile-grade decoupling capacitors. The chassis is constructed entirely of solid aluminium with an anodised finish and a fine brushed texture.
Technical features

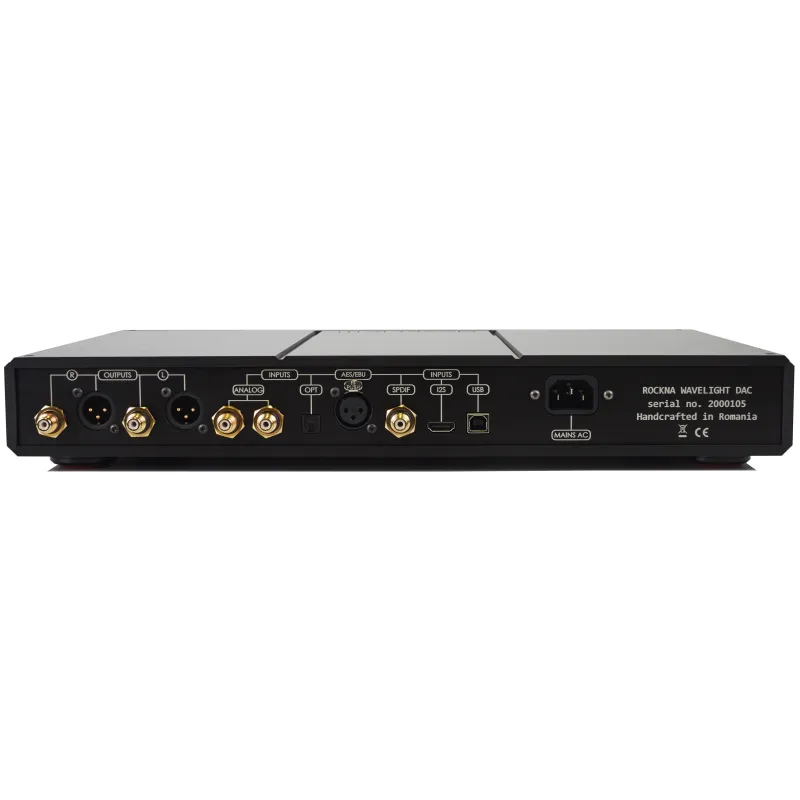

DIGITAL INPUTS
S/PDIF 24bit 44.1-192k PCM, DSD64AES/UER 24bit 44.1-192k PCM, DSD64
USB 32bit 44.1-384k PCM, DSD64-512
OPTICAL 24bit 44.1-176k PCM, DSD64
I2S (LVDS) 32bit 44.1-384k PCM, DSD64-512
OUTPUTS
THD+N: R2R/HYBRID -0.005 %/to be determined
Signal-to-Noise Ratio (0dB): 117dB
Dynamic Range: 117dB
Output Impedance: 50 Ohms
max. output (SE/XLR): 2.4/5.8 Vrms
ANALOG INPUT
THD+N (RCA): -113dB
THD+N (XLR): -119dB
Selectable gain (RCA): 0/6 / 9.5dB
Selectable gain (XLR): 8/14 / 17.5dB
HT bypass YES
Digital processing:
Silicon technology: Xilinx espartano7
Dac Type: R2R 25 bit + Hybrid Mode (under development)
Memory-based PLL, digital domain only: 300 fS jitter
Custom digital filters: NOS, linear, minimum and hybrid phase, 8x
Filter Type: Parks-McClellan (advanced convolution), 2.5K taps
Mathematical accuracy: 60 bits
Stopband attenuation: - 135dB
Passband ripple: 0.00003dB
Volume control: ANALOGIC digitally controlled
Miscellaneous:

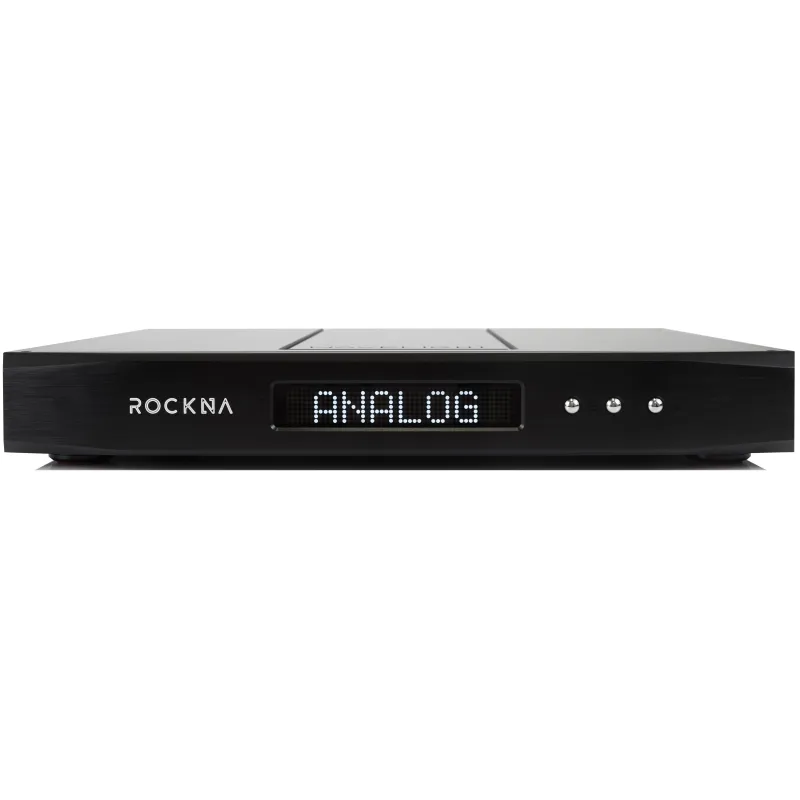

Display: white dot matrix matrix, dimmable
3 control switches
Android/IOS remote control application
Firmware update via USB/BT
Dimensions: 430 x 300 x 55 mm
Full aluminium chassis

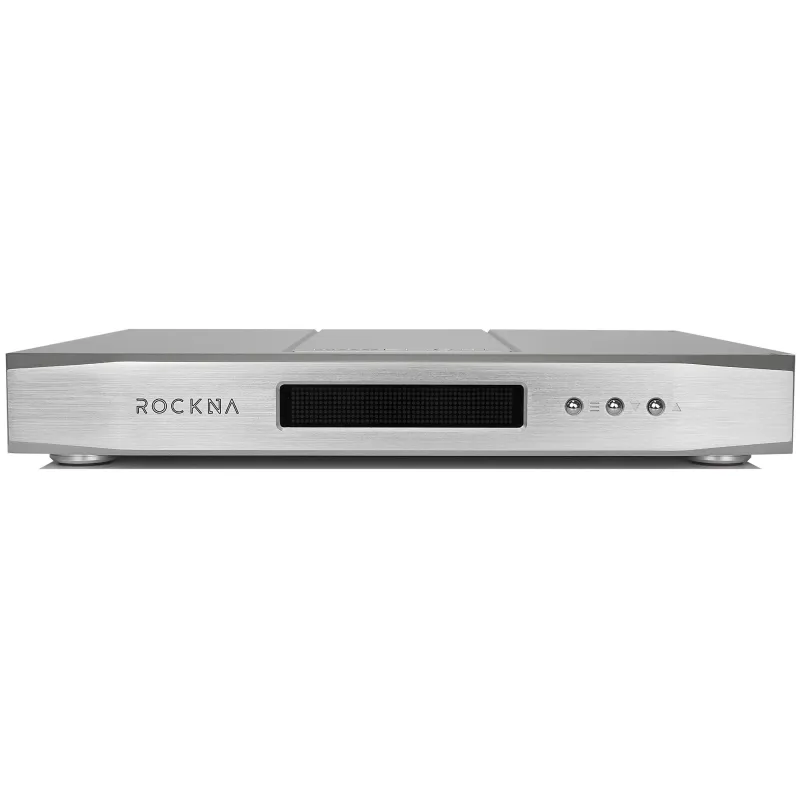

Available colours: Black, Silver
Weight (net/shipping): 7,25/10 Kg
