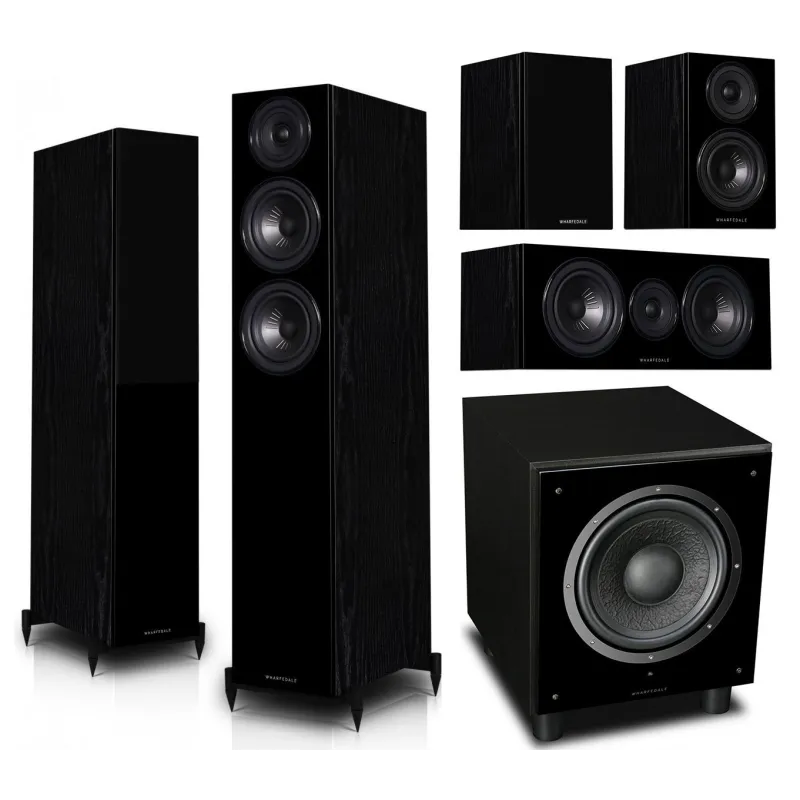

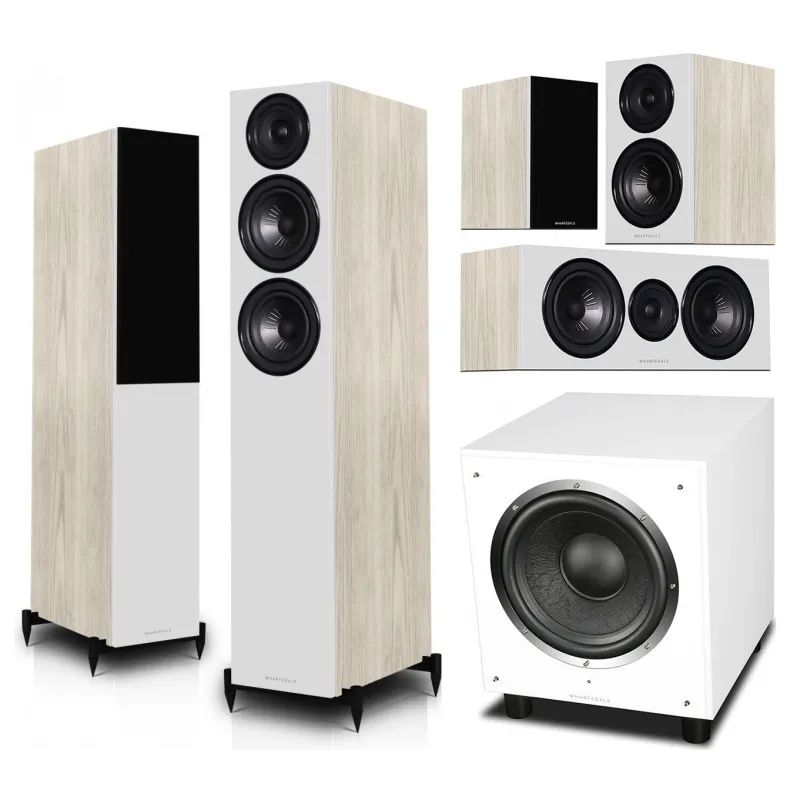

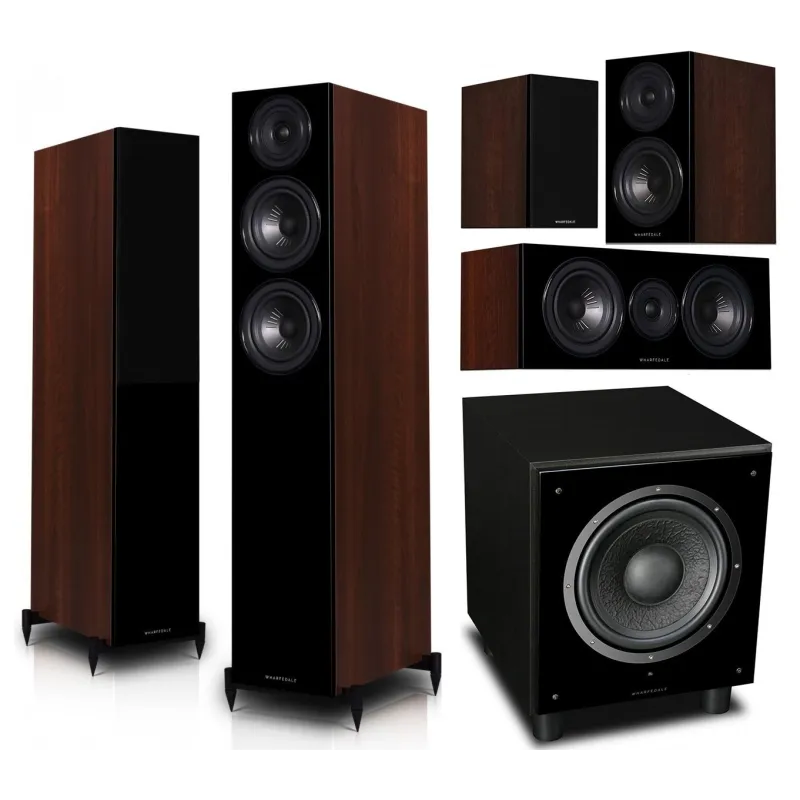

Set consisting of: 1 pair of Wharfedale Diamond 12.3 2.5-way floorstanding speakers + 1 pair of Wharfedale Diamond 12.1 2-way bookshelf speakers + 1 Wharfedale Diamond 12.c 2-way center speaker + 1 Wharfedale SW-10 subwoofer .
Diamond 12.3
Overview 2.5-way fl oorstanding loudspeaker
Enclosure type under re fl ex
Bass Driver 5 "(130mm) Advanced PP Cone
Midrange Driver 5 "(130mm) Advanced PP Cone
Treble driver 1 "(25mm) Textile dome
AV Shield No
Sensitivity (2.83V @ 1m) 89dB
Recommended amplifier power 30-150W
Peak SPL 102dB
Nominal Impedance 8Ω Compatible
Minimum impedance 5Ω
Frequency response (+/- 3dB) 45Hz ~ 20kHz
Bass Extension (-6dB) 40Hz
Crossover frequency 2.2kHz
Cabinet Volume (in liters) 26.6L
Dimensions (W x H x D) (925 + 50) x 180 x (320 + 28) mm
Net weight 19.5 kg / unit
Wharfedale Diamond 12.1
Overview Two-Way Bookshelf Speaker
Enclosure type under re fl ex
2-way transducer plug-in
Bass Driver 5 "(130mm) Advanced PP Cone
Treble driver 1 "(25mm) Textile dome
AV Shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended amplifier power 20-100W
Peak SPL 96dB
Nominal Impedance 8Ω Compatible
Minimum impedance 4.0Ω
Frequency response (+/- 3dB) 65Hz ~ 20kHz
Bass Extension (-6dB) 60Hz
Crossover frequency 2.6kHz
Cabinet volume (in liters) 8.2L
Dimensions (W x H x D) 312 x 180mm x (250 + 28) mm
Net weight 6.8 kg / unit
Wharfedale Diamond 12.c
Overview Two-Way Bookshelf Speaker
Enclosure-type closed box system
2-way transducer plug-in
Bass Driver 5 "(130mm) Advanced PP Cone x2
Treble driver 1 "(25mm) Textile dome
AV Shield No
Sensitivity (2.83V @ 1m) 90dB
Recommended amplifier power 20-120W
Peak SPL 96dB
Nominal Impedance 8Ω Compatible
Minimum impedance 4.0Ω
Frequency response (+/- 3dB) 90Hz ~ 20kHz
Bass Extension (-6dB) 80Hz
Crossover frequency 2.2kHz
Cabinet volume (in liters) 8.7L
Dimensions (W x H x D) 180 x 480 x (180 + 28) mm
Net weight 8.5 kg / unit
Wharfedale SW-10
Drive Units 1 x (10 ") 250mm long reach cone.
Frequency response 40 - 120Hz ± 3dB.
Amplifier output power 200W.
Peak power output 350W.
200mv line input sensitivity for maximum output.
Crossover range 30 - 150Hz.
Stereo Line In inputs (2 x RCA Phono).
Mono line input (LFE) (RCA Phono).
Input Impedance Line Input 10kΩ.
LFE 5kΩ.
Signal to noise ratio (S / N) ≥85dB.
Average Maximum Output @ 1m 110dB.
Characteristics Phase inversion, Auto on-off.
Dimensions Height: (358 + 58) mm (with feet).
Width: 336mm.
Depth: (366 + 15) mm.
Net weight 15kg.
Cabinet Finishes: Rosewood / Pearl Walnut / White Sandex / Black Vinyl with High Gloss Baffle.
Accessories IEC power cord.
